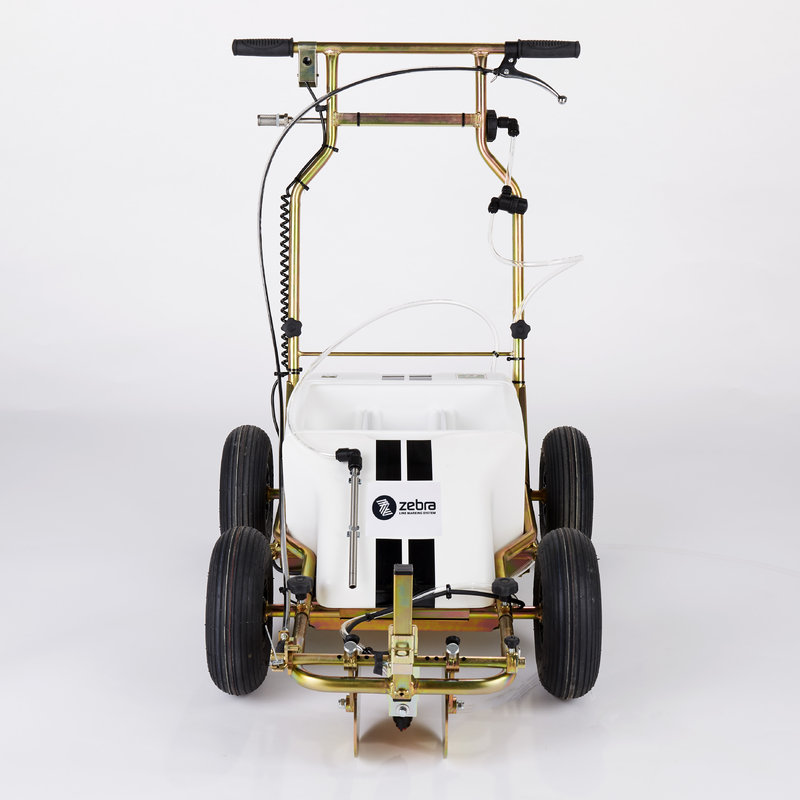

Zebra Lux Grass Line Marking Machine

£1,100.00 £1,270.50

  • Professional Sports Pitch Line Marker
  • High Pressure Spray With Solenoid
  • Paint Recirculation System
  • Adjustable Marking Discs & Raising Handle
  • Push Button Control
  • Rechargeable Battery
  • Air Filled Tyres
  • Set Of Spray Nozzles Included

Made In The UK: High quality machine manufactured by experts in line marking.

Push Button Control: Allows for easy operation of the spray, with the simple press of a button.

High Pressure Spray System: Consistent paint delivery and excellent coverage over the grass surface.

Integrated Solenoid: Stops the paint spray instantly when the button is released, meaning no drips.

Paint Recirculation System: Keeps the paint at the ideal consistency for spraying.

Battery Powered: Line mark for hours on a single charge.

Adjustable Round Line Marking Discs: For crisp and accurate line edges on grass surfaces. Can be adjusted to set the line width, up to 6".

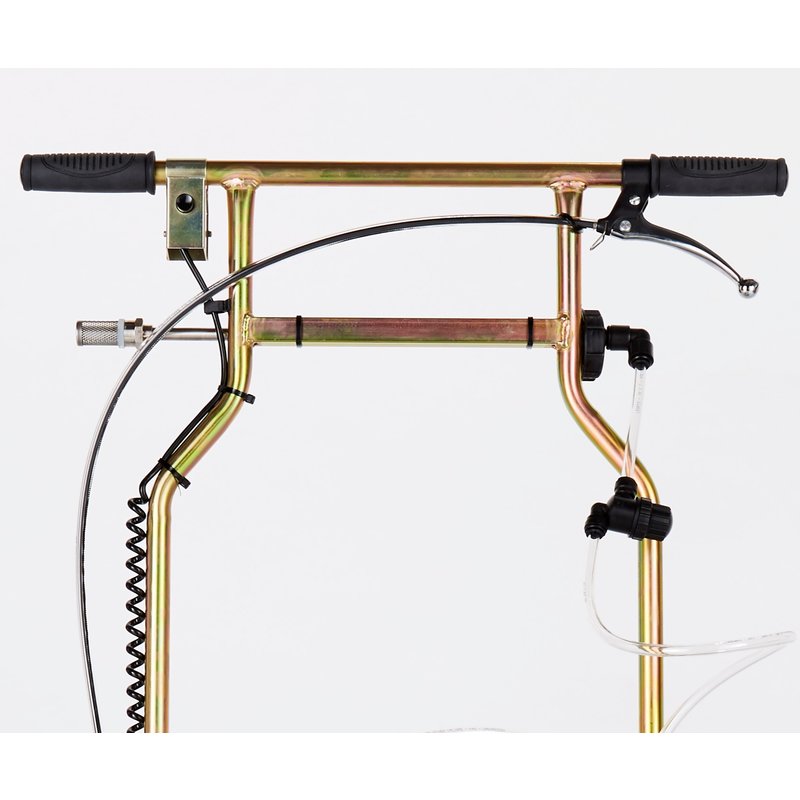

Disc Raising Handle: For easy repositioning at the end of a line.

Front Mounted Spray: Feels like a traditional, robust and solid line marker and helps with accuracy of lines.

Large Air Filled Tyres: For sturdy and reliable operation, they make it easy to stay on track.

Paint Container Holding Tray: Allows a tub of Zebra line marking paint to be placed securely on to the machine. The pump probes are inserted into the tub and take the paint straight out of the container, meaning no diluting, mixing or pouring of paint, and much less mess than traditional machines.

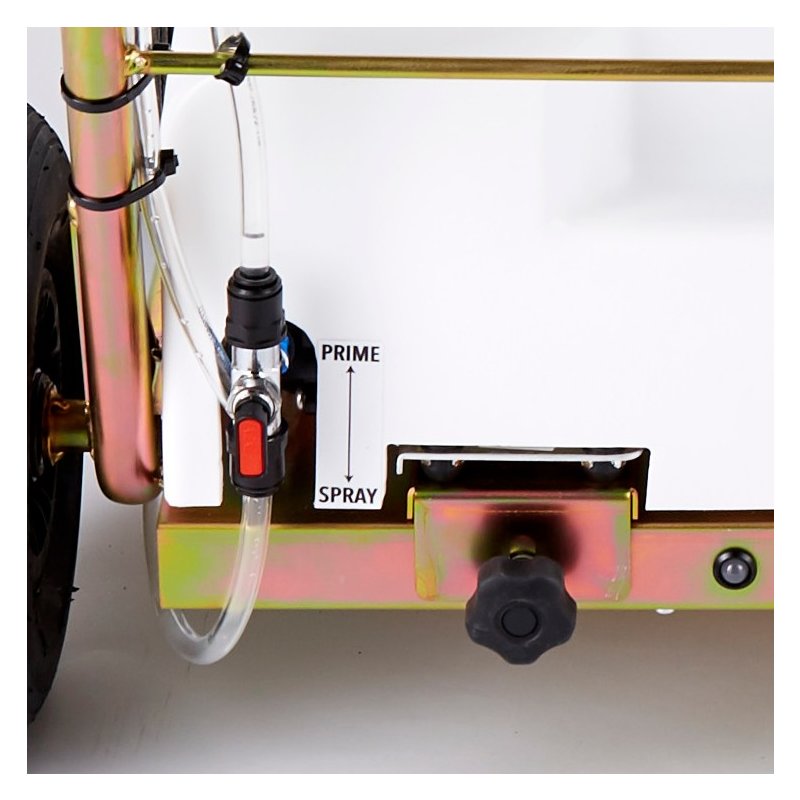

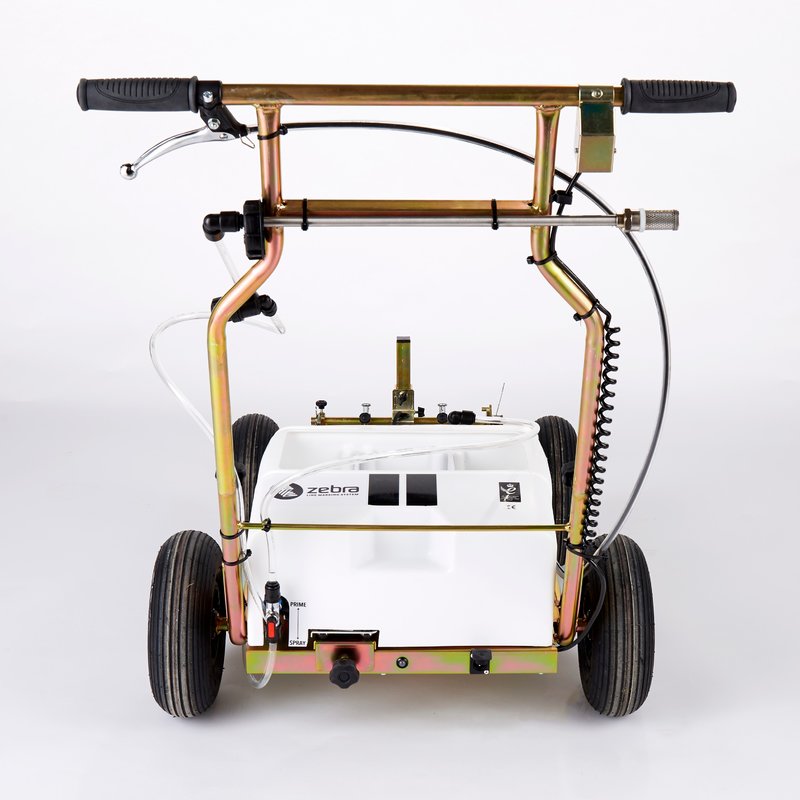

Pump Priming Switch: Located at the back of the machine, this switch allows the system to be primed for use quickly and easily at the start of the job. It also allows the machine to be flushed through clean at the end of the job.

Selection of Nozzles Included: Control the paint flow rate & complete different types of line marking jobs, from initial marking to overmarking - providing great lines whilst saving paint and money.

1L Flush Thru Solution Included: Allows the system, nozzles and filters to be flushed through and cleaned after use to prevent blockages. Extra 10L tubs are available to purchase separately.

Accessories Available: A handheld spray lance can be used for freehand marking, ideal for penalty spots, corner areas, sign marking and more. A hard surface line marking conversion kit is also available, which includes a side arm and square line marking discs. The side arm allows the spray to be mounted on the side of the machine, so you can get right up to kerbs and walls when line marking on hard surfaces. The square discs provide crisp and accurate line edges on hard surfaces. A running track line marking boom can be attached to this machine. It features 3 spray nozzles along a long boom, with wheels positioned at either end. It allows for 3 lines to be sprayed alongside each other simultaneously - perfect for line marking running tracks. We also have extra 10L tubs of Flush Thru available. You can add these accessories to your order using the tick boxes above.

Zebra Lux Grass Pitch Line Marker

The ultimate sports pitch line marking machine

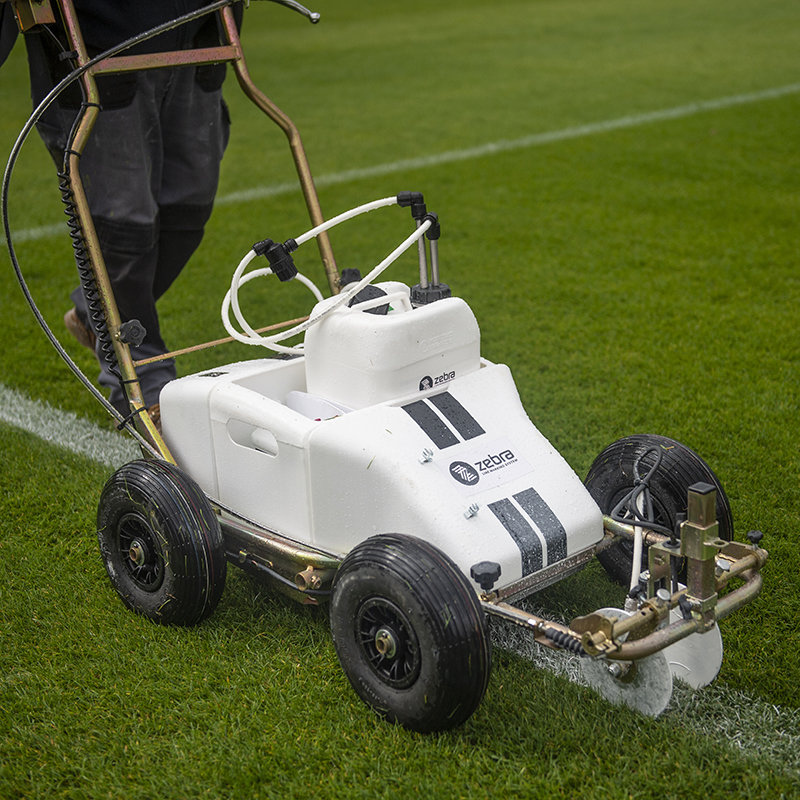

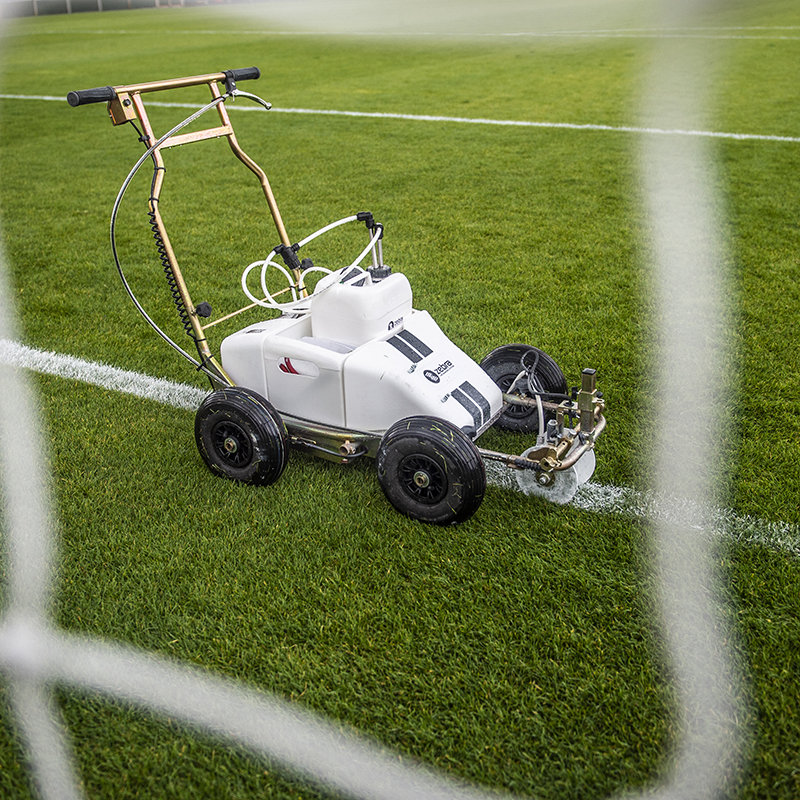

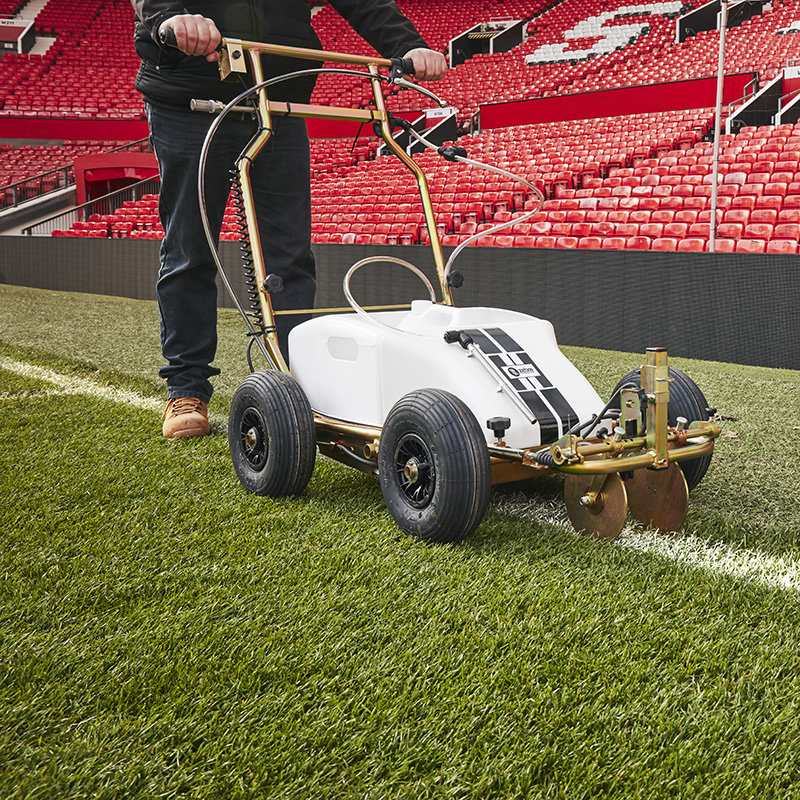

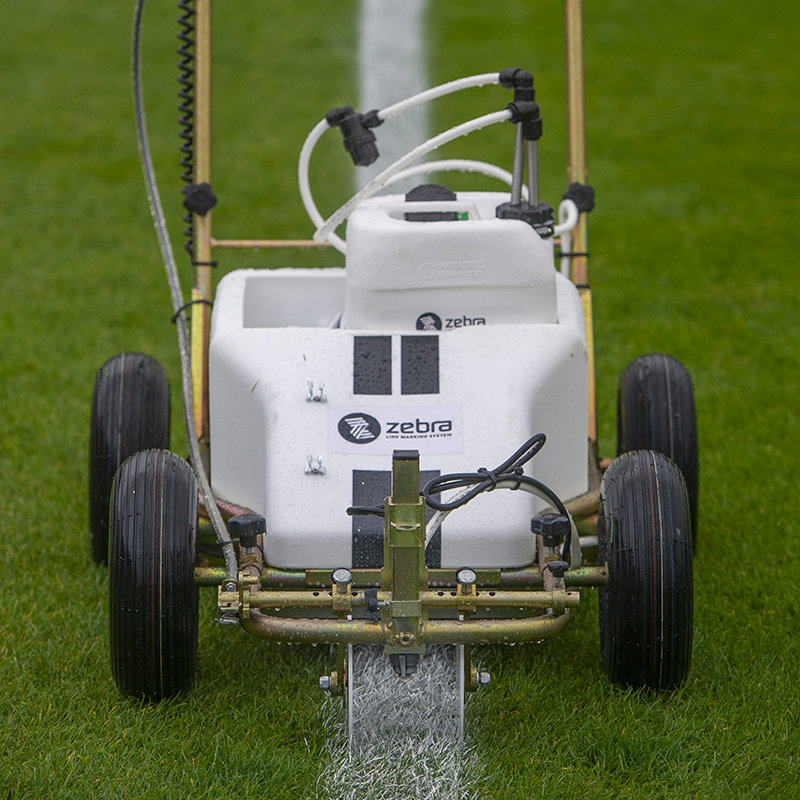

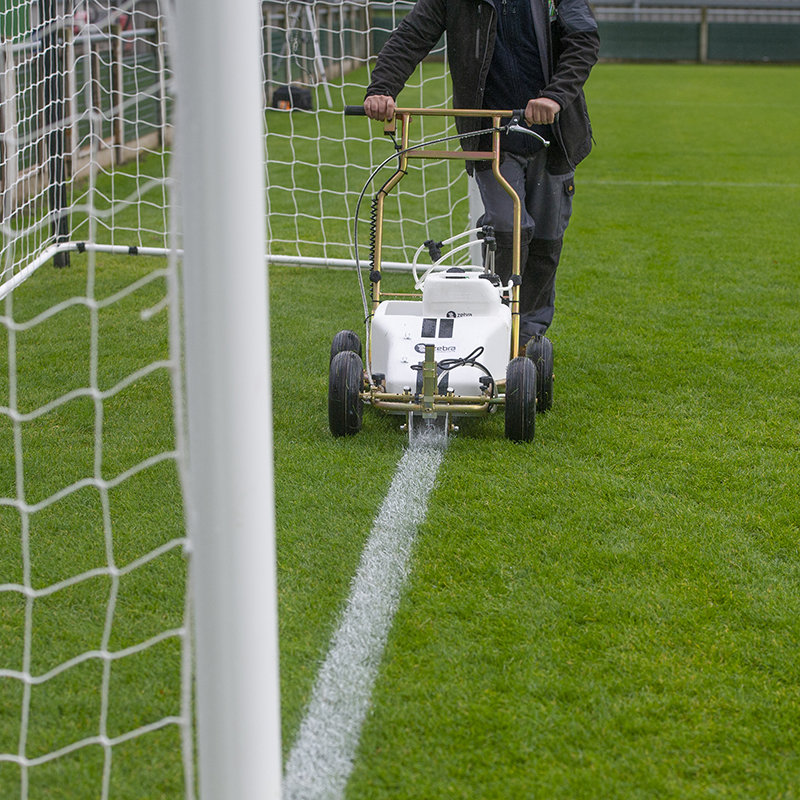

The Zebra Lux Grass Line Marking Machine is a professional sports pitch line marker, designed to spray high quality lines on grass pitches and artificial grass surfaces, including astro turf, 3G and 4G.

It is a solid and robust piece of equipment, made in the UK and designed to offer the best quality lines for football pitches, rugby pitches, tennis courts and more.

The Zebra Lux pitch line marker features a high-pressure pump system, powered by a rechargeable battery. The pump system takes the paint directly from the paint container, using probes inserted into the paint container, and sprays it evenly and consistently on to the grass surface.

The spray is easily controlled by a simple push button. The solenoid integrated into the system stops the paint flow dead as soon as the button is released, meaning no drips.

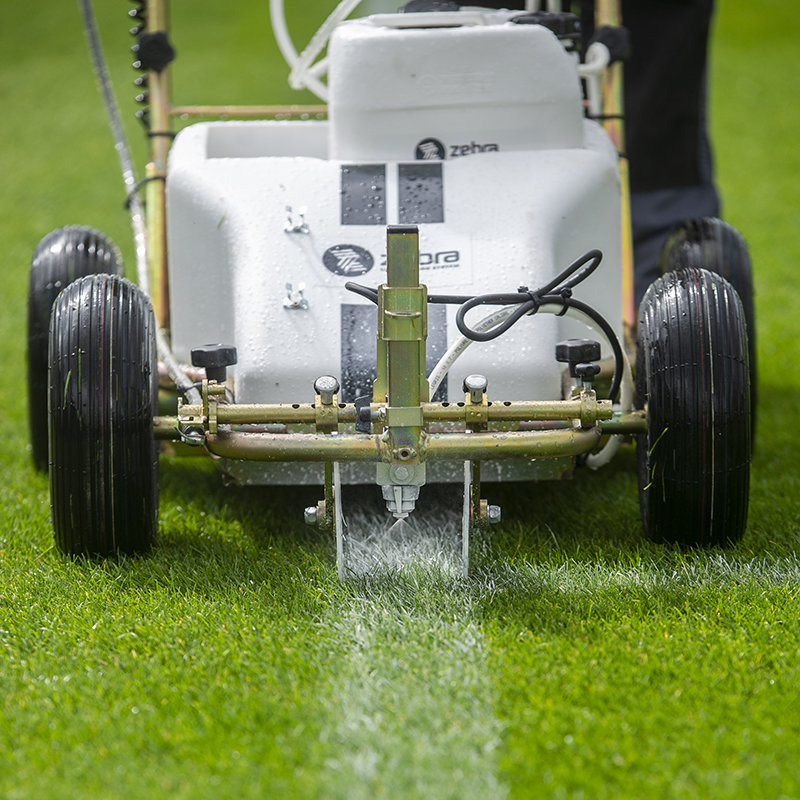

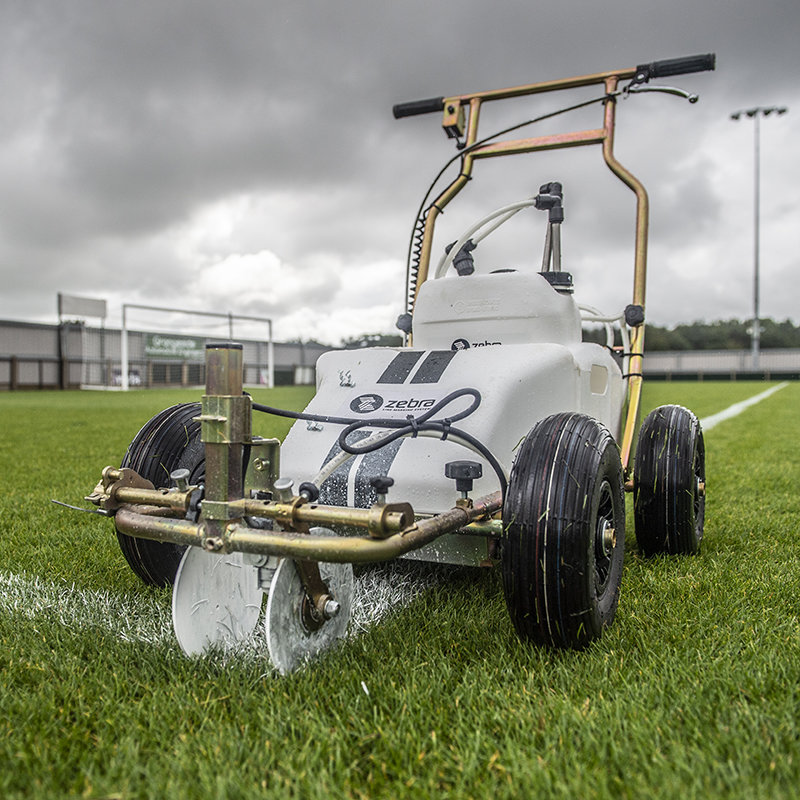

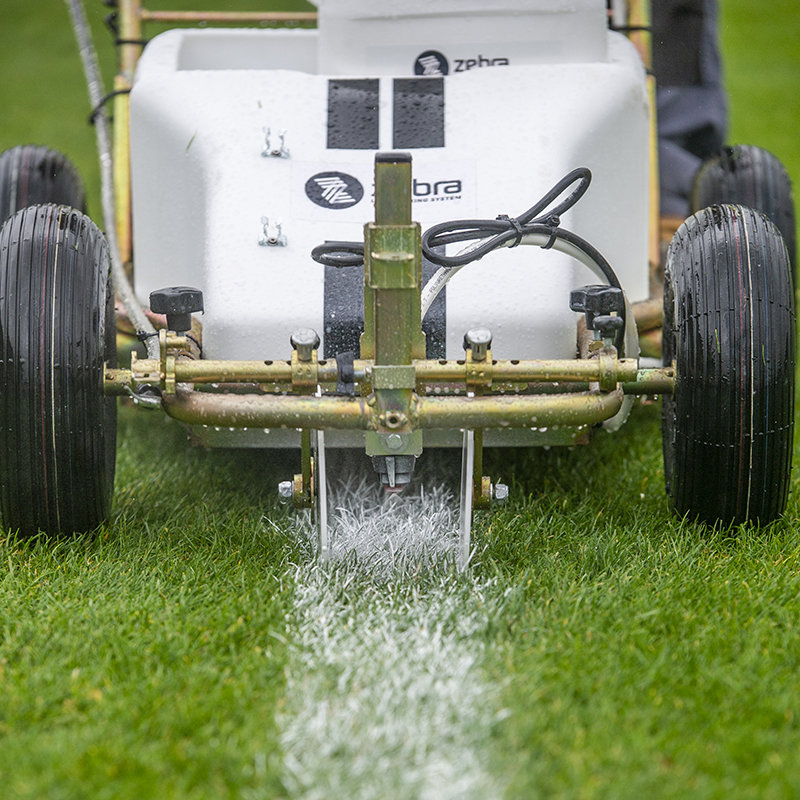

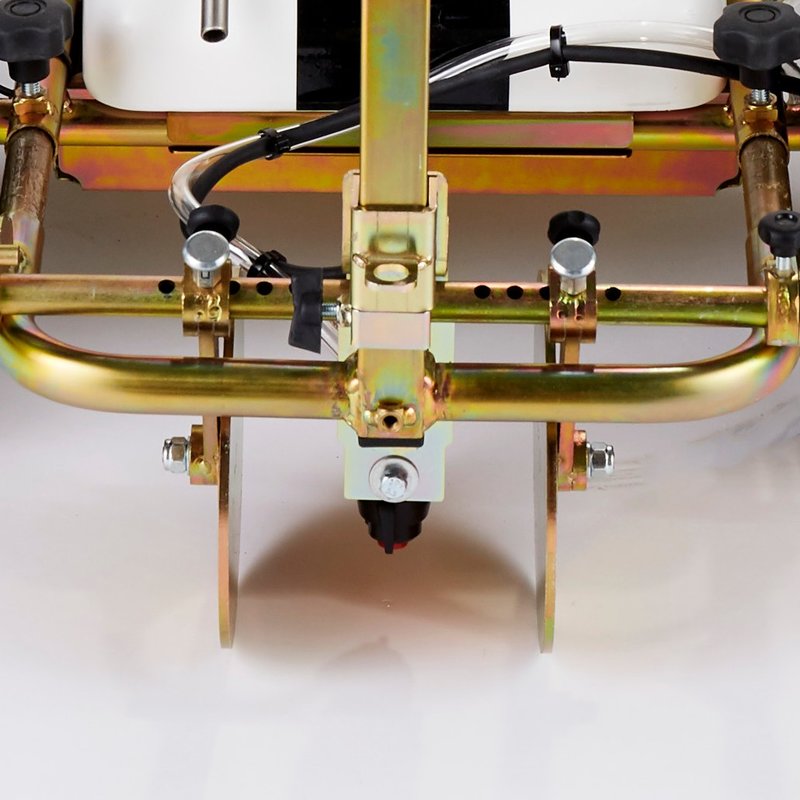

The adjustable round discs which surround the spray nozzle provide clear and crisp edges to the lines, and allow the line width to be adjusted up to 6" wide. The discs can be raised using a handle on the control bar, in order to reposition the machine easily at the end of a line.

The machine has two pump probes which insert into the Zebra line marking paint container. One probe carries the paint to the spray nozzle while the other probe recirculates paint back into the container. This recirculation system ensures that the paint is always well mixed, so it remains an ideal consistency for spraying.

The rechargeable battery provides hours of use per charge, allowing large line marking jobs to be completed without having to stop.

This Zebra line marking machine comes with a range of different nozzles, suited to different applications. Each nozzle applies a different amount of paint per minute. If you are marking brand new lines, you can use a nozzle that sprays a dense coat of paint, and if you are overmarking existing lines to refresh them and make them more visible, you can choose a nozzle that sprays a lighter coating of paint. This system uses much less paint than traditional transfer wheel line markers but offers high quality professional results.

The Zebra Lux line marking machine is designed to be used with Zebra Grass Line Marking Paint, which is ready to use right out of the container and does not need mixing or pouring - simply shake it before use and place the container on to the machine. Place the pump probe into the container of paint, prime the pump using the switch at the back of the machine and it is ready to use. The machine is designed to carry the paint container and keep it steady while you work.

The pump can be primed quickly at the start of the job with the flick of a switch. The pump priming switch also allows the system to be flushed through and cleaned at the end of the job, to prevent blockages and ensure years of reliable service.

The Zebra Lux Grass Line Marker can be used by anyone from professional sports clubs, to amateur sports clubs, schools, leisure centres and more.

Accessories:

An optional handheld spray lance attachment is available, which allows for free-hand marking and spraying of features such as penalty spots, stencils, patterns, logos, numbers and letters.

A hard surface line marking conversion kit is also available, which includes a side arm and square line marking discs. This allows the machine to be used for marking on concrete and tarmac surfaces. The side arm allows the spray to be mounted on the side of the machine, so you can get right up to kerbs and walls when line marking on hard surfaces. The square discs provide crisp and accurate line edges on hard surfaces.

A running track line marking boom can be attached to this machine. It features 3 spray nozzles along a long boom, with wheels positioned at either end. It allows for 3 lines to be sprayed alongside each other simultaneously - perfect for line marking running tracks.

The machine comes with a 1L bottle of Flush Thru solution, for cleaning the system and nozzles after a job. You can also purchase 10L bottles of this solution separately.

You can add these accessories to your order using the tick boxes above.

Zebra Lux Machine Dimensions:
Height at the lowest setting: 93 cm
Height at the highest setting: 108 cm
Length at the shortest setting: 110 cm
Length at the longest setting: 125 cm
Width: 72 cm
Weight: 32 kg
Warranty: 12 months

Zebra Lux Line Marking Machine
Round discs for grass & artificial grass line marking
1L Zebra Flush Thru Pump & Nozzle Cleaner
Tub of Zebra spray nozzles
Charger cable
Instructions

Optional Extras:

10L Zebra Flush Thru Pump & Nozzle Cleaner

Zebra Lux Hard Surface Line Marking Conversion Kit
- side arm attachment & square discs which enable the Zebra Lux machine to be used for hard surface line marking

Handheld Spray Lance With Control Valve & Hose
- for freehand marking of numbers, letters, signs & stencils

Running Track Line Marking Boom
- a long boom attachment featuring three spray nozzles. Allows for three lines to be sprayed alongside each other simultaneously. Perfect for marking running tracks.
