Compact Line Marker: Ideal for users of all levels. Easy to handle and simple to store when not in use.
Made In The UK: High quality machine manufactured by experts in line marking.
High Pressure Spray System: Delivers consistent paint coverage for high quality lines.
Battery Powered: Line Mark for up to 4 hours on a single charge.

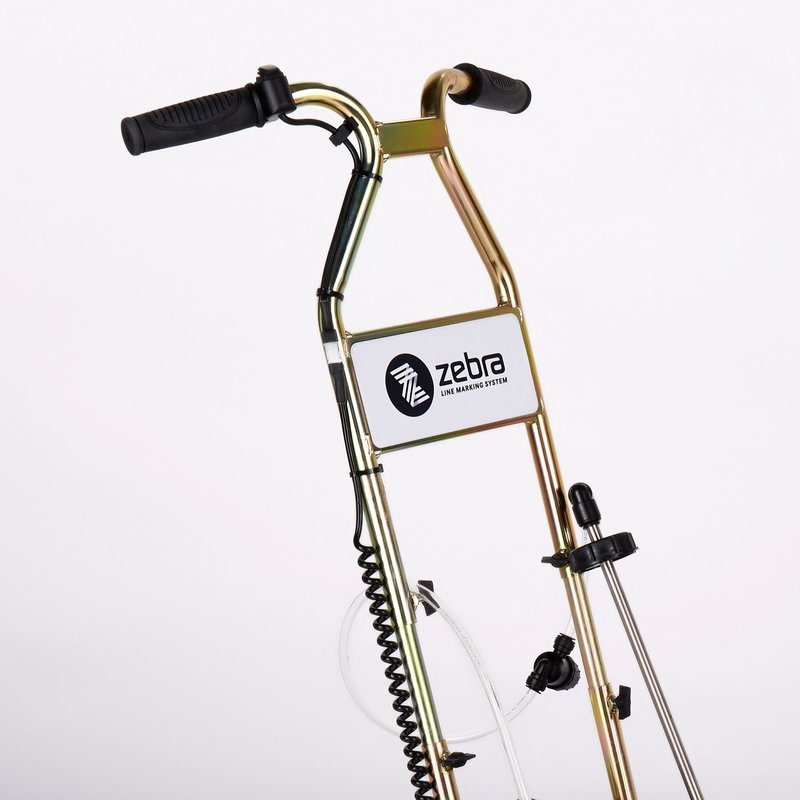

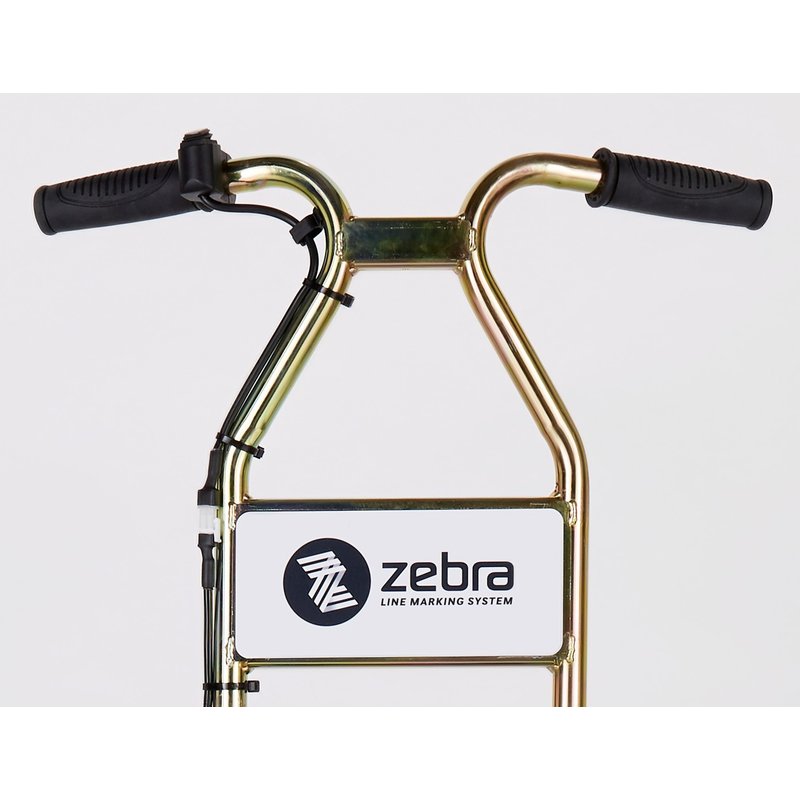

Push Button Control: Allows for easy operation of the spray, with the simple flick of a switch.

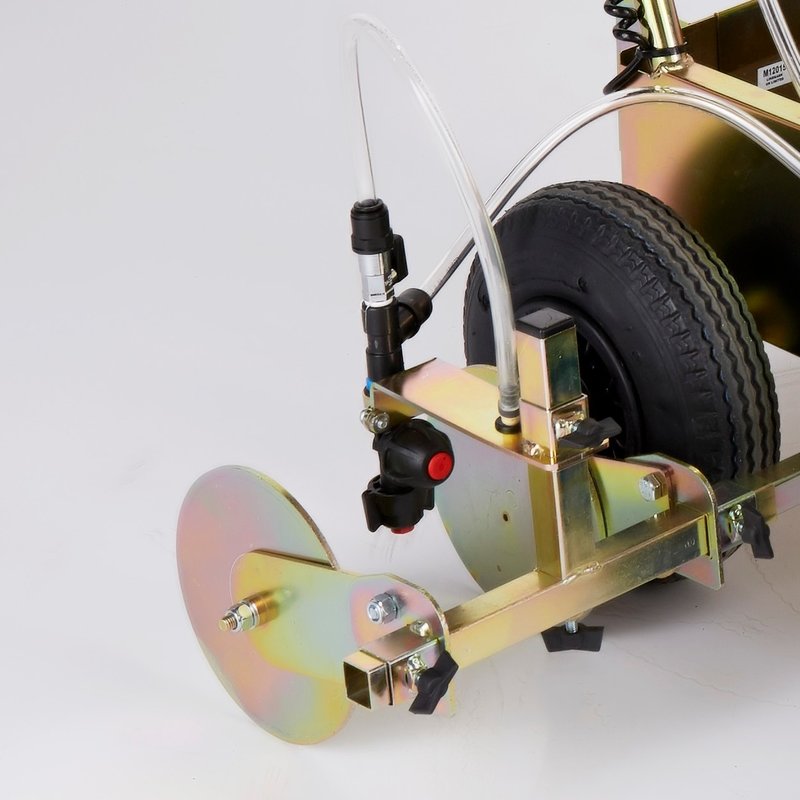

Side Mounted Spray: Makes it easy to monitor where the paint is being put down.

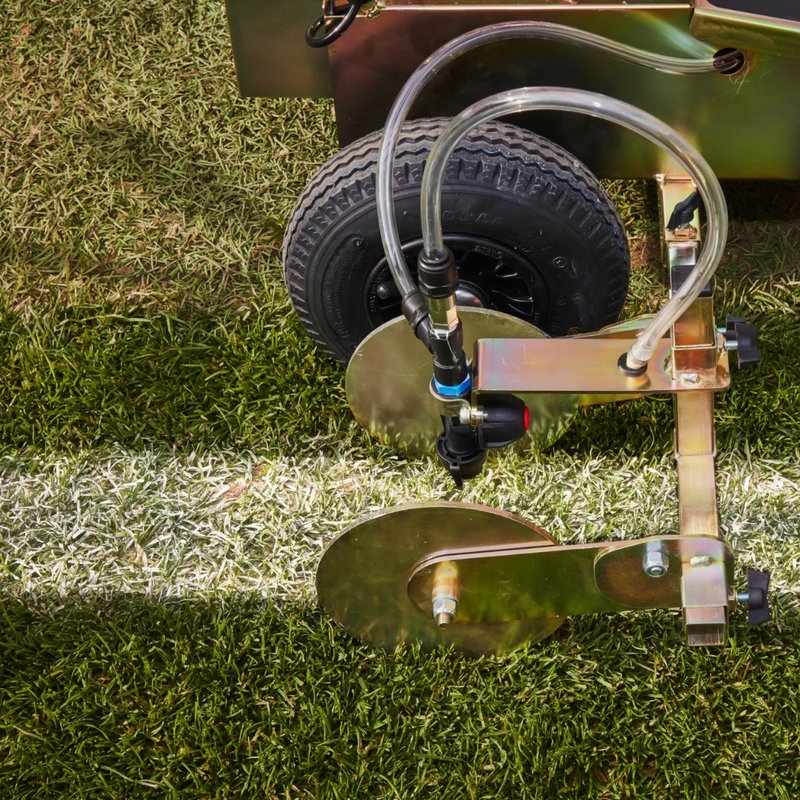

Adjustable Round Line Marking Discs: For crisp and accurate line edges on grass surfaces. Can be adjusted to set the line width, up to 7.5".

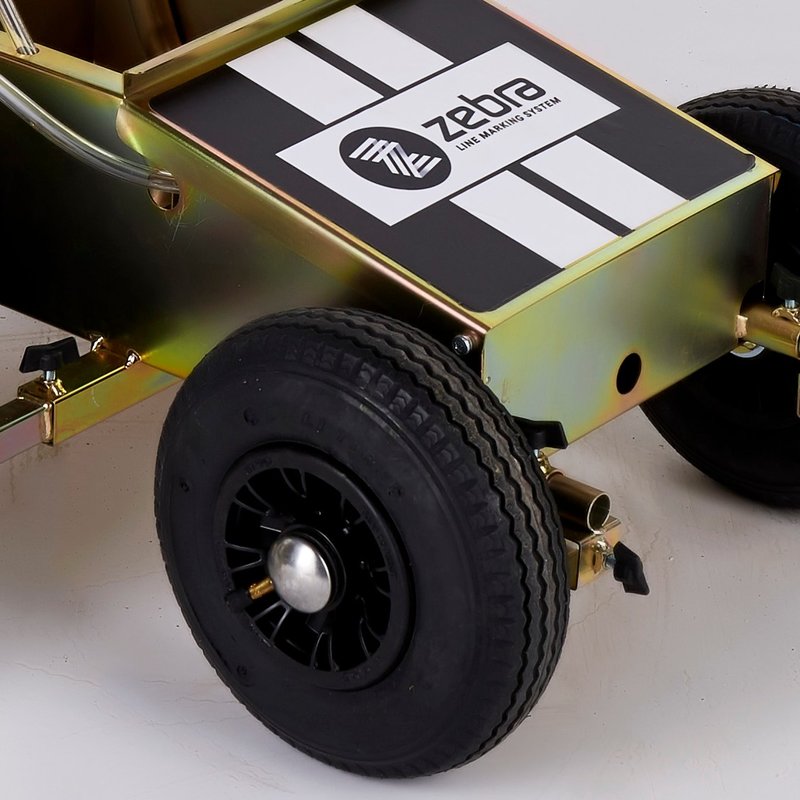

Large Air Filled Tyres: For sturdy and reliable operation, they make it easy to stay on track.
Paint Container Holding Tray: Allows a tub of Zebra line marking paint to be placed securely on to the machine. The pump probe is inserted into the tub and takes the paint straight out of the container, meaning no diluting, mixing or pouring of paint, and much less mess than traditional machines.
Pump Priming Switch: Located at the back of the machine, this switch allows the system to be primed for use quickly and easily at the start of the job. It also allows the machine to be flushed through and cleaned easily at the end of the job.
Selection of Nozzles Included: Control the paint flow rate & complete different types of line marking jobs, from initial marking to overmarking - providing great lines whilst saving paint and money.
1L Flush Thru Solution Included: Allows the system, nozzles and filters to be flushed through and cleaned after use to prevent blockages. Extra 10L tubs are available to purchase separately.
Accessories Available: A handheld spray lance can be used for freehand marking, ideal for penalty spots, corner areas, sign marking and more. Square line marking discs can also be fixed to this machine, ideal for hard surface line marking on tarmac and concrete. We also have extra 10L tubs of Flush Thru available. You can add these accessories to your order using the tick boxes above.

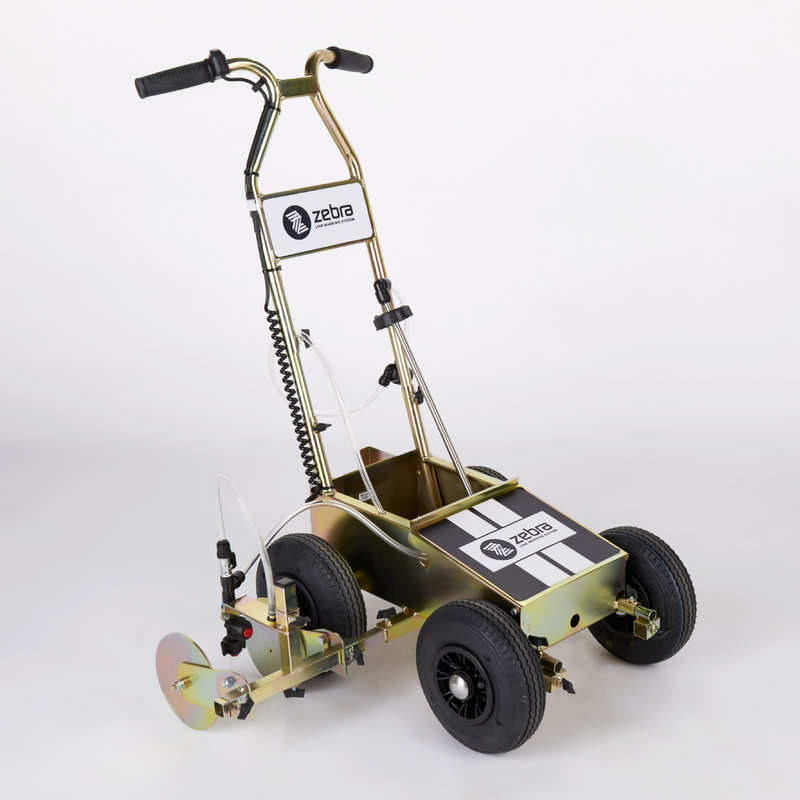

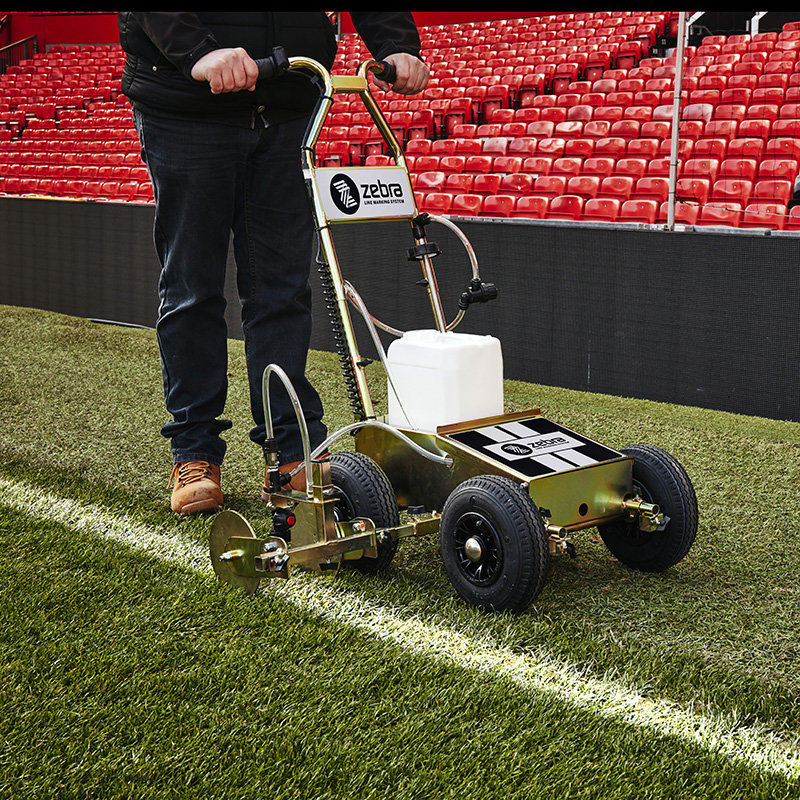

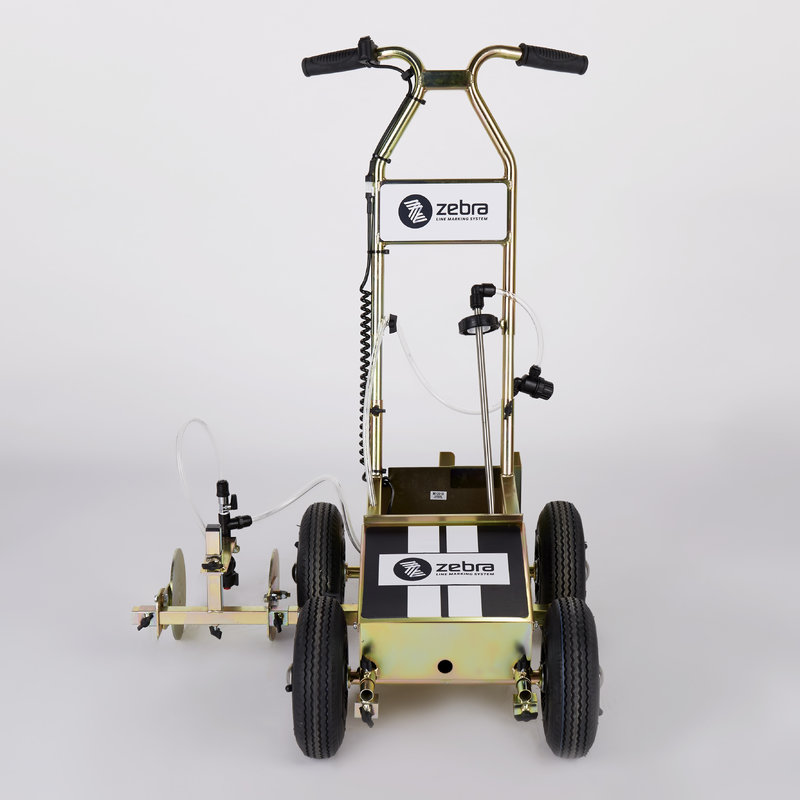

The Zebra Eco Grass Line Marker is a compact and high quality line marking machine, made in the UK and designed for line marking sports pitches and courts on grass and artificial grass surfaces, such as astro turf, 3G, 4G and more.
The line marker is designed to be easy to use for operators of any level - from schools, leisure centres and local sports clubs to professional sports clubs - yet to provide the highest quality profesisonal results. It is powered by a rechargable battery and it features a high pressure pump system which takes the paint directly from the paint container and sprays it evenly and consistently on to the grass surface. It has adjustable line width discs which provide clear and crisp edges to the lines, and allow the width of the line to be adjusted up to 7.5" wide.
The rechargeable battery offers up to 4 hours of consistent use per charge, so you can complete multiple pitch marking jobs without having to stop.
The machine comes with a side mounted spray arm and a range of different nozzles, suited to a different applications. Each nozzle applies a different amount of paint per minute. If you are marking brand new lines, you can use a nozzle that sprays a dense coat of paint, and if you are updating existing markings you can choose a nozzle that sprays a lighter coating of paint. This system allows you to just use the paint that you need - reducing wastage and saving you money! The high quality of the spray application and the paint ensure bright, crisp and professional results.
The Zebra Eco Grass Line Marking machine is perfect for sports clubs of every level - from amateur to professional, as well as leisure centres, sports facilities, schools, local councils, events companies, groundskeeping companies and more. Its can be used for football pitch line marking, rugby pitch marking, hockey pitch marking, tennis court line marking, American football pitch marking and much more. It is also suitable for marking grass for events, racecourses, and athletics.
This line marking machine is designed to be used with Zebra Grass Line Marking Paint, which is ready to use right out of the container and does not need mixing or pouring - simply shake it before use and place the container onto the machine. Place the pump probe into the container of paint, prime the pump using the switch at the back of the machine and it is ready to use. The machine is designed to carry the paint container and keep it steady while you work.
Accessories: An optional handheld spray lance attachment is available, which allows for free-hand marking and spraying of features such as penalty spots, stencils, patterns, logos, numbers and letters. Square line marking discs can also be purchased, which can be used to replace the round discs on this machine and allow for precise and accurate hard surface line marking, on concrete and tarmac. The machine comes with a 1L bottle of Flush Thru solution, for cleaning the system and nozzles after a job. You can also purchase 10L bottles of this solution separately. You can add these accessories to your order using the tick boxes above.
Height at the lowest setting: 87 cm
Height at the highest setting: 107 cm
Length at the shortest setting: 84 cm
Length at the Longest setting: 104 cm
Width without the side arm: 47 cm
Width with the side arm: 100 cm
Weight: 20 kg
Warranty: 12 months
Zebra Eco Line Marking Machine
Round discs for grass & artificial grass line marking
1L Zebra Flush Thru Pump & Nozzle Cleaner
Tub of Zebra spray nozzles
10L Zebra Flush Thru Pump & Nozzle Cleaner
Square Discs For Hard Surface Line Marking
Handheld Spray Lance With Control Valve & Hose For Freehand Marking
