Zebra Lux Hard Surface Line Marking Bundle

£1,577.50 £1,790.25

  • Includes Zebra Lux Machine & 40L Hard Surface Paint
  • High Pressure Spray With Solenoid
  • Paint Recirculation System
  • Adjustable Square Discs & Raising Handle
  • Rechargeable Battery
  • Produces High Quality Durable Lines
  • Ideal For Car Park Marking, Industrial Floors & More

Great Value Deal: Includes a Zebra Lux Line Marking Machine & 40L of Hard Surface Paint. Everything you need in one package deal to line mark car parks, industrial floors, hard sports courts and more.

Professional Line Marking Paint: Bright, colourful and durable lines on concrete and tarmac surfaces. Available in a range of colours.

Made In The UK: High quality line marker and paint manufactured by experts in the industry.

Push Button Control: Allows for easy operation of the spray, with the simple press of a button.

High Pressure Spray System: Consistent paint delivery and excellent coverage over the surface.

Integrated Solenoid: Stops the paint spray instantly when the button is released, meaning no drips.

Paint Recirculation System: Keeps the paint at the ideal consistency for spraying.

Battery Powered: Line mark for hours on a single charge.

Side Mounted Spray: Mark right up to kerbs & walls without any problems.

Adjustable Square Line Marking Discs: For crisp and accurate line edges on hard surfaces. Can be adjusted to set the line width, up to 7.5".

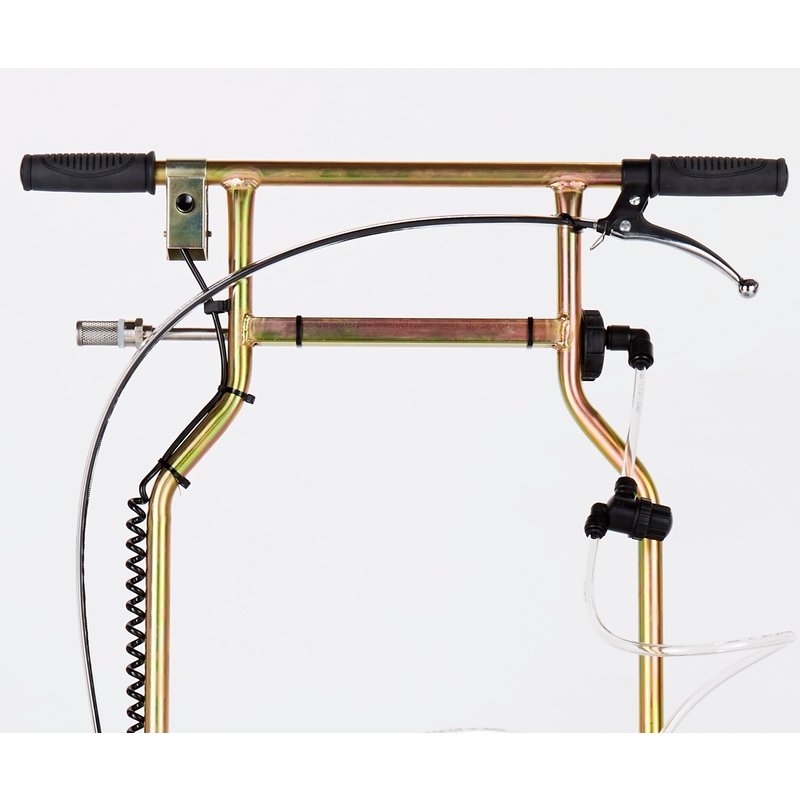

Disc Raising Handle: For easy repositioning at the end of a line.

Large Air Filled Tyres: For sturdy and reliable operation, they make it easy to stay on track.

Paint Container Holding Tray: Allows a tub of Zebra line marking paint to be placed securely on to the machine. The pump probes are inserted into the tub and take the paint straight out of the container, meaning no diluting, mixing or pouring of paint, and much less mess than traditional machines.

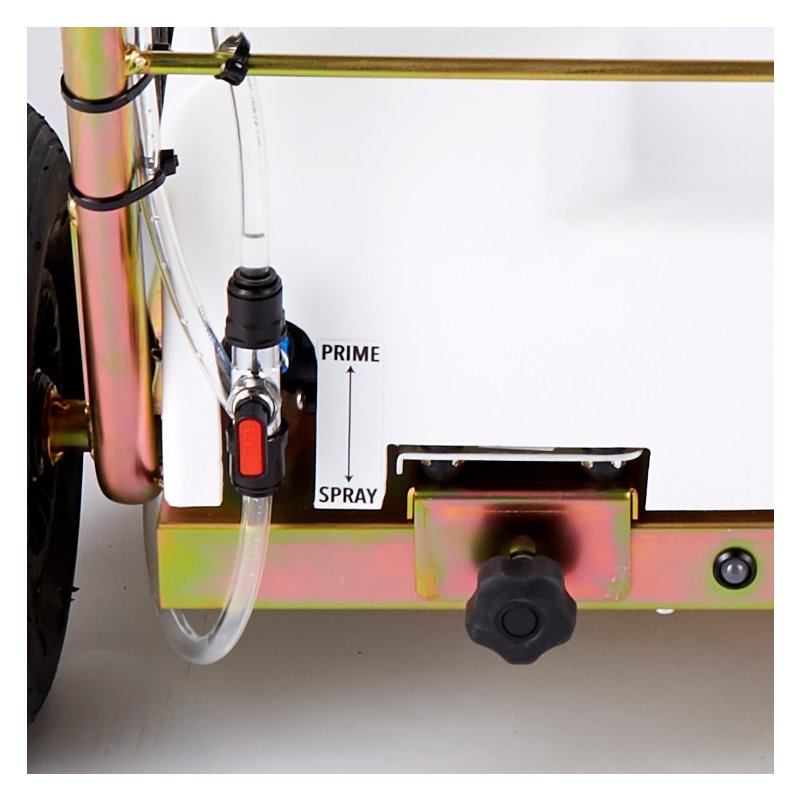

Pump Priming Switch: Allows the system to be primed for use quickly and easily at the start of the job. It also allows the machine to be flushed through and cleaned at the end of the job.

Selection of Nozzles Included: Control the paint flow rate & complete different types of line marking jobs, from initial line marking to overmarking - providing great lines whilst saving paint and money.

1L Flush Thru Solution Included: Allows the system, nozzles and filters to be flushed through and cleaned after use to prevent blockages. Extra 10L tubs are available to purchase separately.

Optional Accessories Available: A handheld spray lance can be used for freehand marking, ideal for penalty spots, corner areas, sign marking and more. Round line marking discs can also be purchased, which can be used to replace the square discs on this machine and allow for precise line marking on grass surfaces, for sports pitches and courts. A running track line marking boom can be attached to this machine. It allows for 3 lines to be sprayed alongside each other simultaneously - perfect for line marking running tracks. We also have extra 10L tubs of Flush Thru available. You can add these accessories to your order using the tick boxes above.

Zebra Lux Hard Surface Line Marking Bundle

Great value package deal of professional line marking equipment

The Zebra Lux Hard Surface Line Marking Bundle includes a Zebra Lux line marking machine along with 40 litres of Zebra Hard Surface Line Marking Paint together in a great value deal.

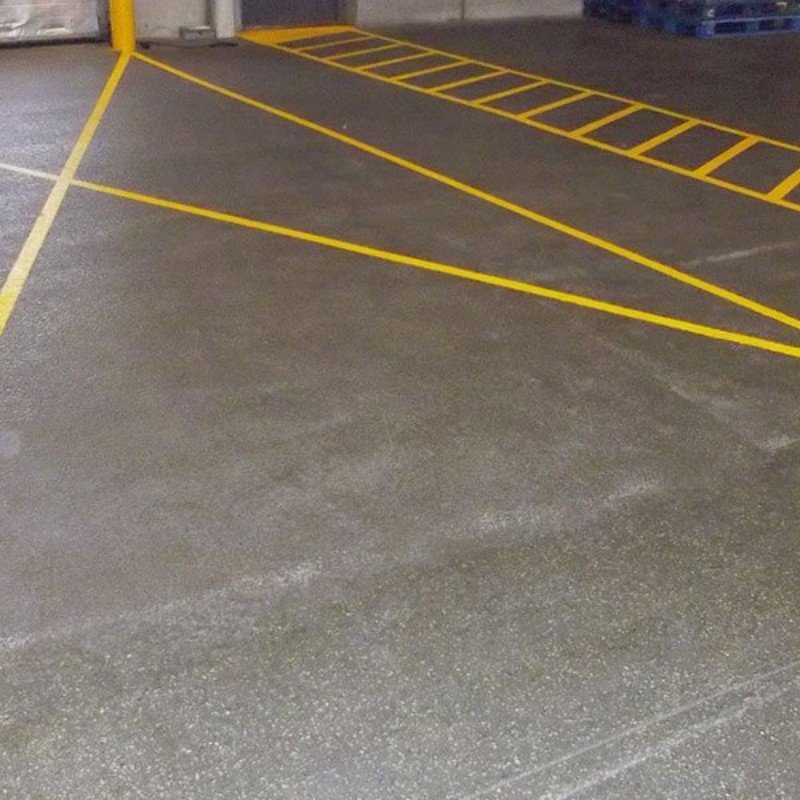

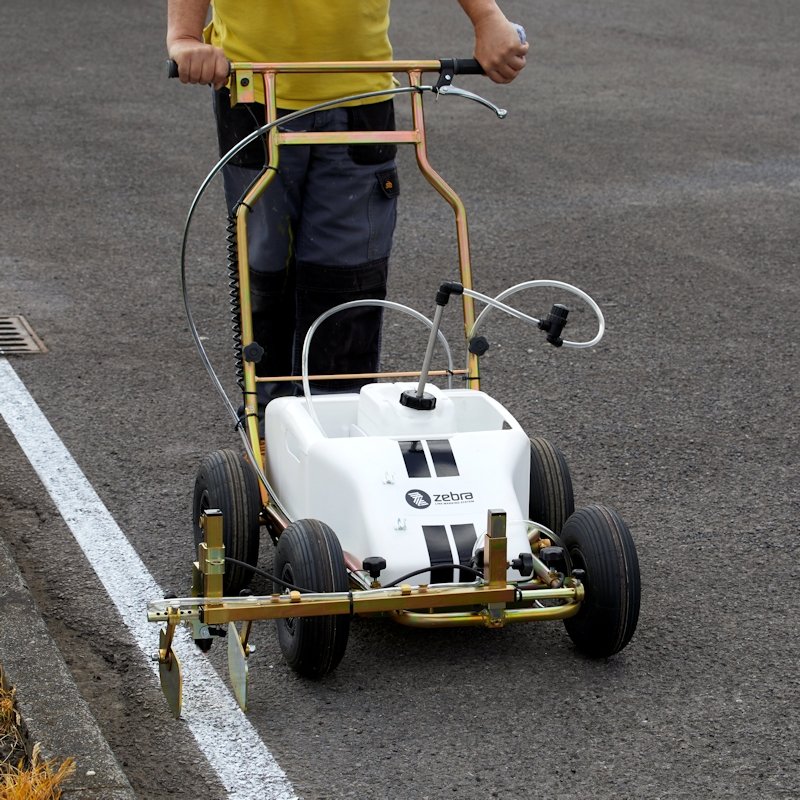

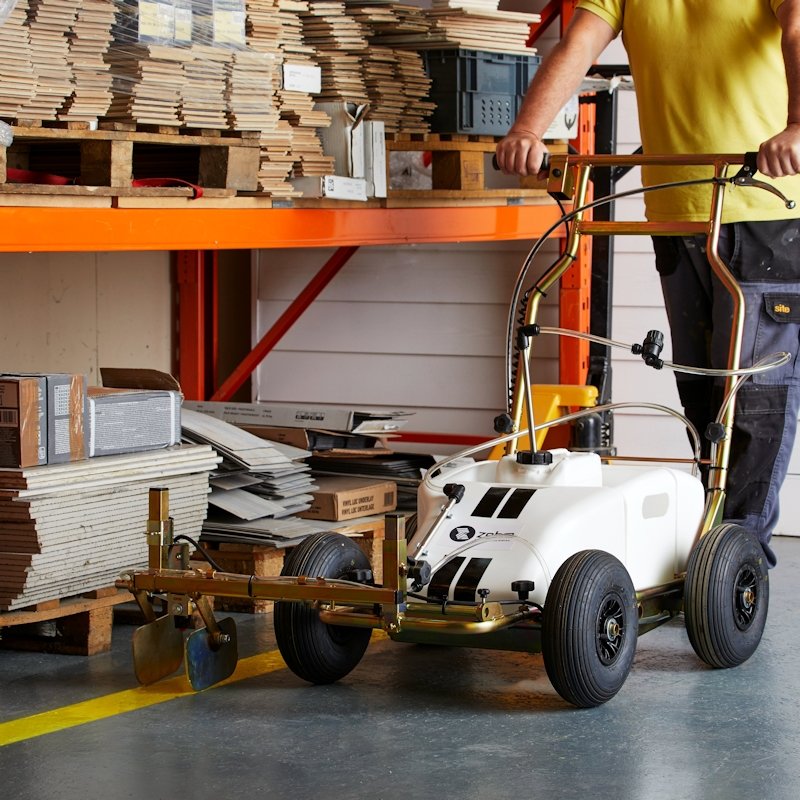

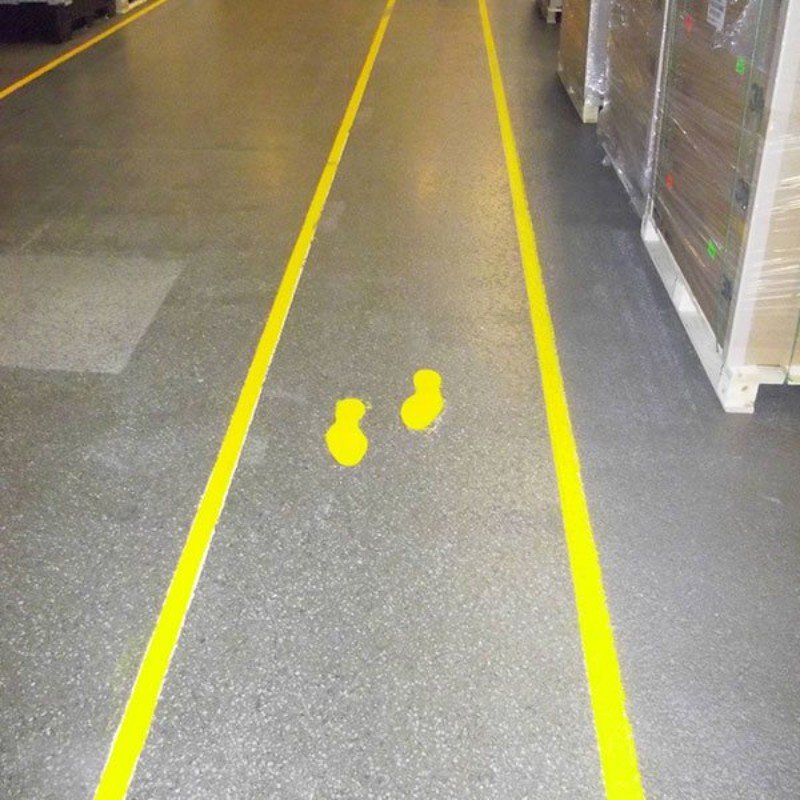

This professional line marking equipment can be used both indoors and outdoors to mark out bright, crisp, durable and colourful lines on concrete and tarmac surfaces. It is ideal for line marking car parks, industrial floors, hard sports courts and more.

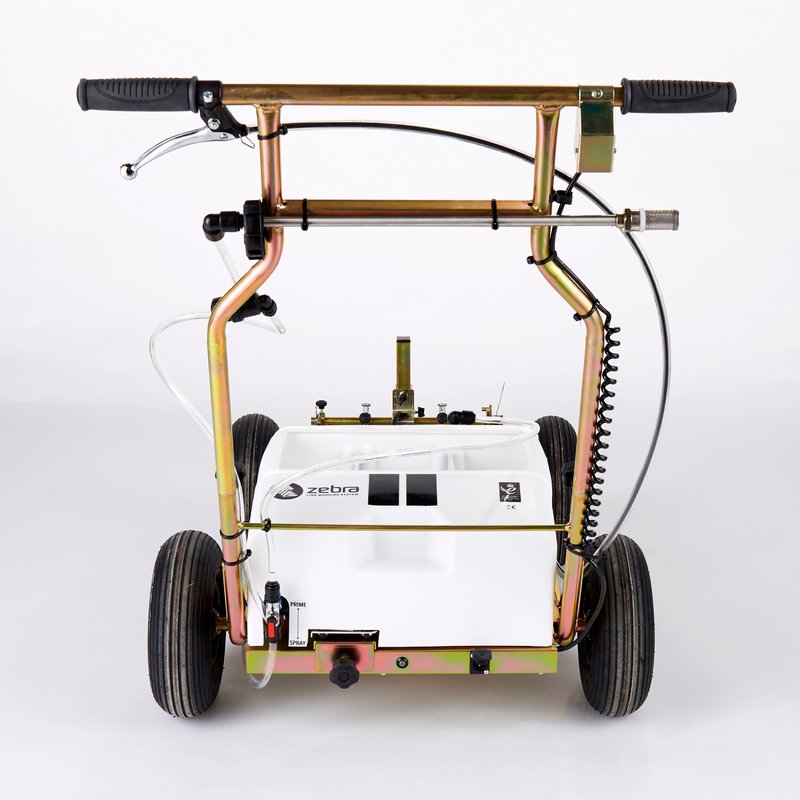

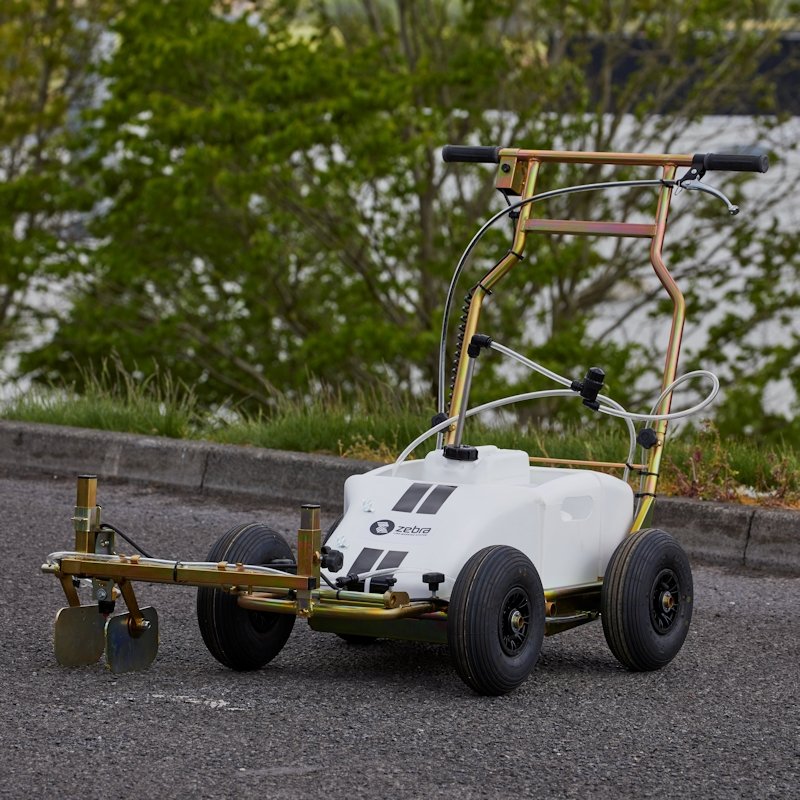

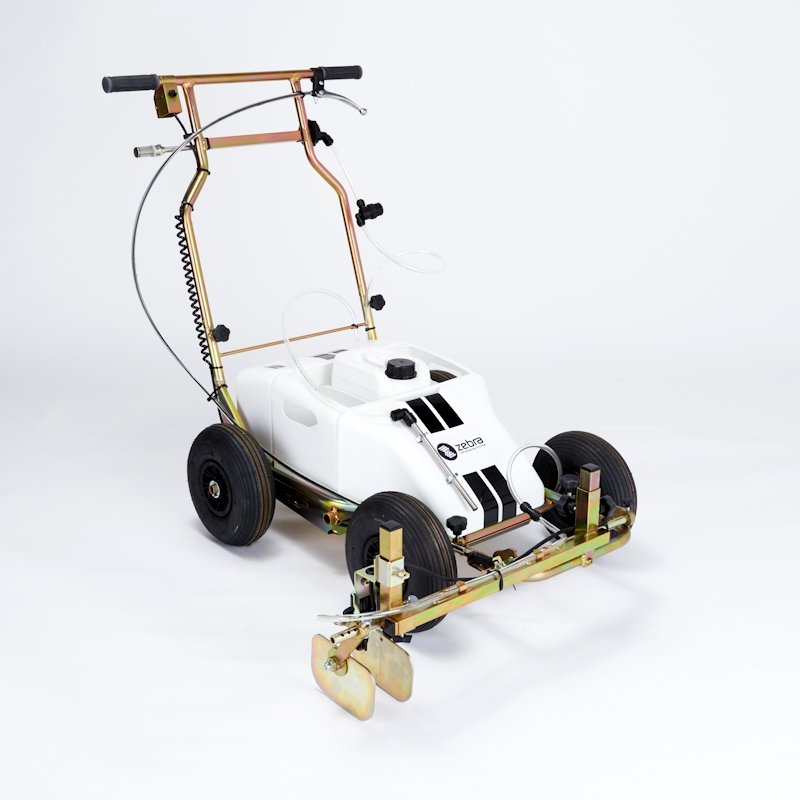

Zebra Lux Hard Surface Line Marker

Solid. Robust. Professional Results.

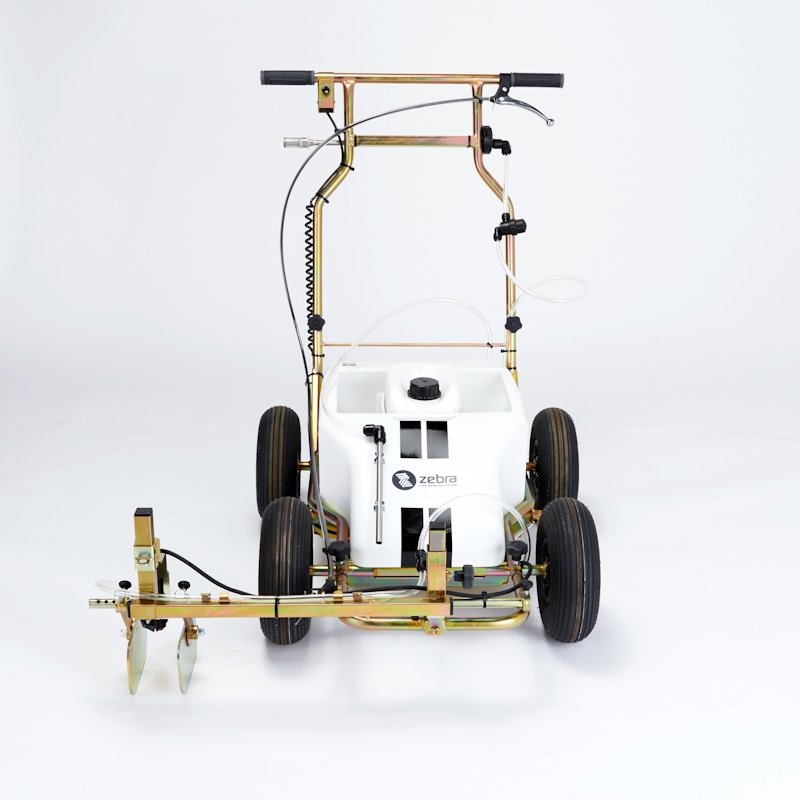

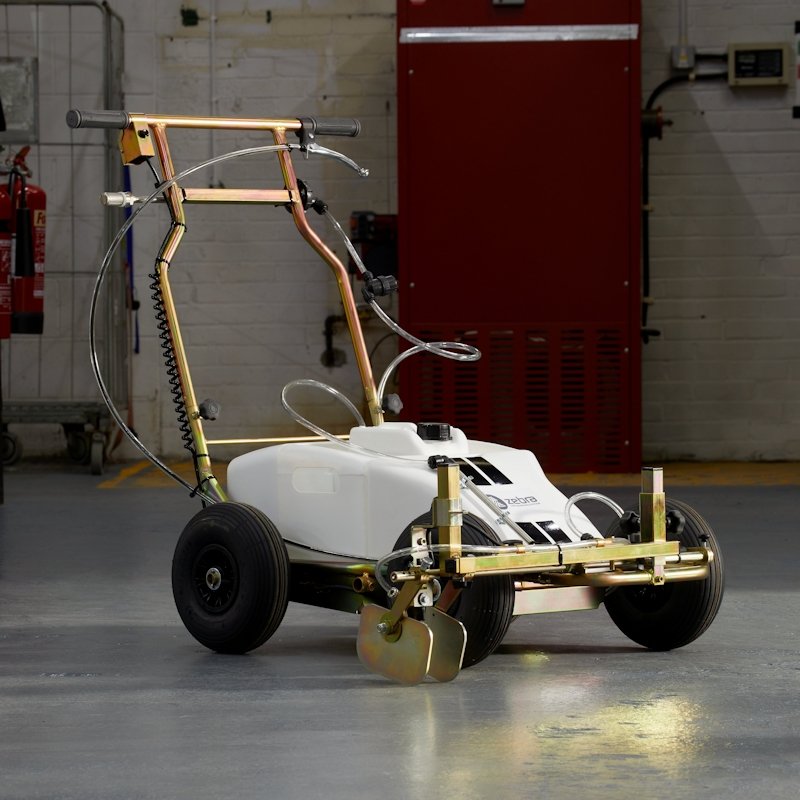

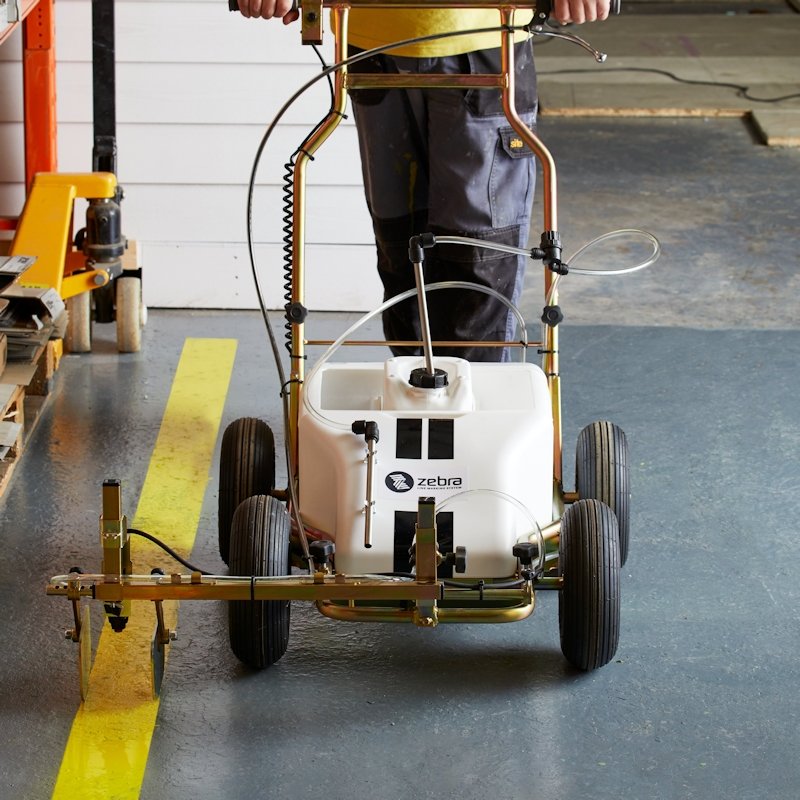

The Zebra Lux is the ultimate spray line marker. It is a solid and robust machine manufactured in the UK, it has a range of great features, offers professional results, and it is easy to use.

The Zebra Lux line marker features a high-pressure spray system, powered by a rechargeable battery. A single charge offers hours of line marking, so you can complete large jobs without having to stop.

The spray is operated with the simple push of a button. The pump takes paint directly from the paint container, using probes inserted into the tub, and sprays it evenly and consistently on to the ground. It provides consistent coverage over the surface, for rich, highly visible and long-lasting lines. The solenoid integrated into the system stops the paint flow dead as soon as the button is released, meaning no drips.

This line marking machine has two paint probes which insert into the Zebra line marking paint container, which connect to the pump. One probe carries the paint to the spray nozzle while the other probe recirculates paint back into the container. This recirculation system ensures that the paint is always well mixed, so it remains at an ideal consistency for spraying

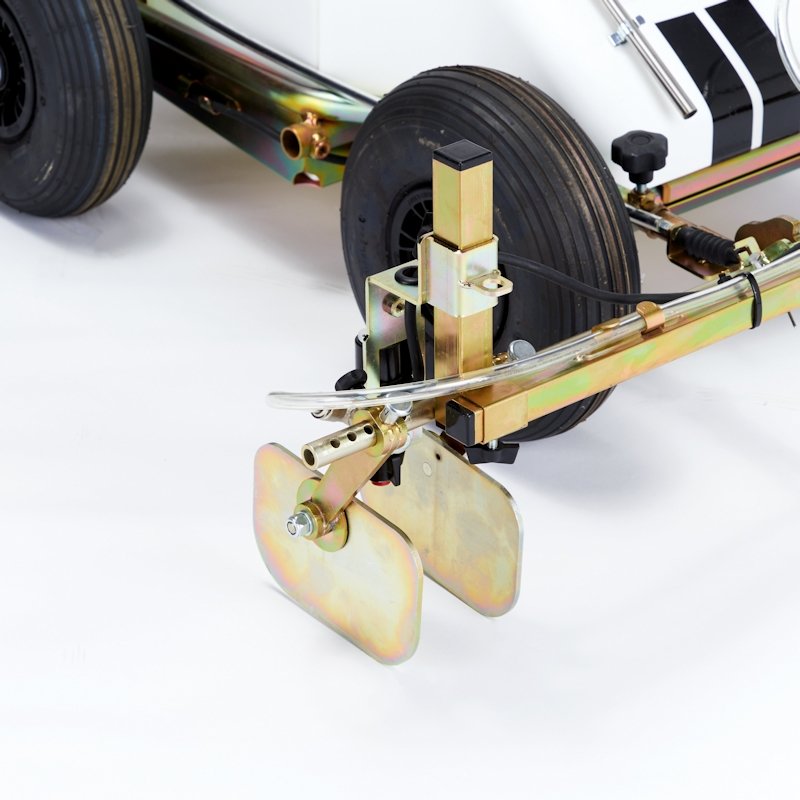

The square discs which surround the spray nozzle ensure a crisp and precise finish to the lines. These discs can be adjusted quickly to set the line width that you require, up to 7.5”. The discs can be raised using a handle on the control bar, in order to reposition the machine easily at the end of a line. The side mounted spray arm allows you to line mark right up to walls and kerbs without a problem.

This system uses specially designed nozzles that come included with the machine. Each nozzle applies a different amount of paint per minute. If you are marking fresh lines, you can use a nozzle that sprays a dense coat of paint, and if you are updating existing lines you can choose a nozzle that sprays a lighter coating of paint. This system allows you to use less paint but still offers professional lines.

The large air-filled tyres on this machine make it very stable and simple to operate. The robust frame and large tyres help to keep you line marking along a straight and true line.

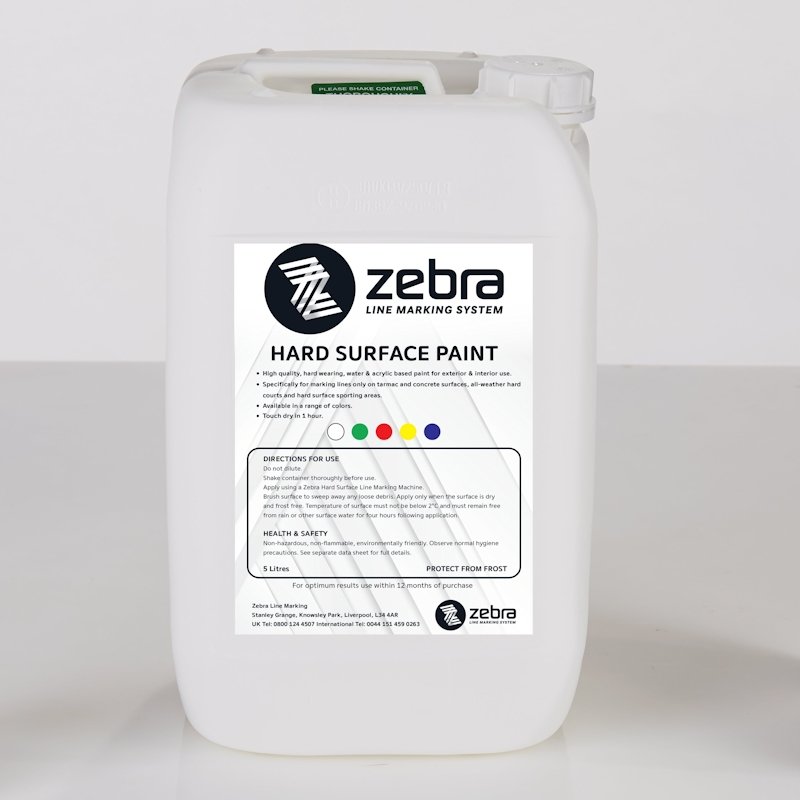

Zebra Hard Surface Line Marking Paint

Bright, colourful & durable lines on concrete and tarmac surfaces

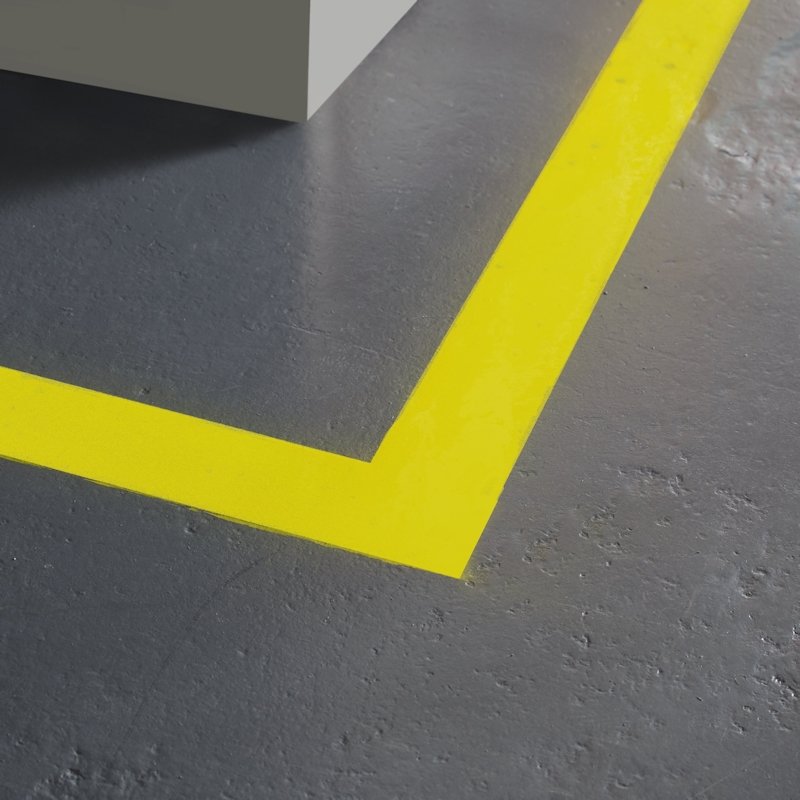

Zebra Hard Surface Line Marking Paint is a high quality, ready to use acrylic-based line marker paint, formulated in the UK. This paint can be applied both indoors or outdoors on concrete and tarmac surfaces. It produces bright, colourful and durable lines. It is perfect for car park line marking, industrial floor line marking, hard sports court line marking and more.

There is no need to dilute, mix or pour this paint. It comes ready to use. Simply shake the paint container, place it on the Zebra line marking machine, insert the pump probes into the tub, prime the pump and you are ready to line mark. This reduces waste and mess and makes the job much easier.

This line marking bundle deal comes with 40 litres of Zebra Hard Surface Line Marking Paint, in your choice of colour - white, yellow, red, blue, orange, green and black.

Please note: You can select your paint colour option using the dropdown box above and checkout online. If you wish to customise your bundle with a mix of paint colours (eg. 10L white, 10L yellow, 10L blue, 10L red), simply give our sales team a call and we will be able to customise your order to your requirements.

Optional Accessories Available

Get the most out of your Zebra Lux line marker

We have a range of optional accessories available for this deal. A handheld spray lance can be used for freehand marking, ideal for freehand marking of stencils and signs. Round line marking discs can also be purchased, which replace the square discs on this machine and allow for precise line marking on grass surfaces, for sports pitches and courts. A running track line marking boom can be attached to this machine. It allows for 3 lines to be sprayed alongside each other simultaneously - perfect for line marking running tracks. We also have extra 10L tubs of Flush Thru available. You can add these accessories to your order using the tick boxes above.

Zebra Lux Machine Dimensions:
Height at the lowest setting: 93 cm
Height at the highest setting: 108 cm
Length at the shortest setting: 110 cm
Length at the longest setting: 125 cm
Width: 72 cm
Weight: 32 kg
Warranty: 12 months

Zebra Lux Line Marking Machine
8 x 5L Zebra Hard Surface Line Marking Paint
Square discs for hard surface line marking
Zebra Lux side arm attachment
1L Zebra Flush Thru Pump & Nozzle Cleaner
Tub of Zebra spray nozzles
Charger cable
Instructions

Optional Extras:

10L Zebra Flush Thru Pump & Nozzle Cleaner

Round Discs For Grass & Artificial Grass Line Marking
- enable the Zebra Lux machine to be used for grass & artificial grass line marking

Handheld Spray Lance With Control Valve & Hose
- for freehand marking of numbers, letters, signs & stencils

Running Track Line Marking Boom
- a long boom attachment featuring three spray nozzles. Allows for three lines to be sprayed alongside each other simultaneously. Perfect for marking running tracks.
