Zebra Lux Hard Surface Line Marking Machine

£1,100.00 £1,270.50

  • High Pressure Spray With Solenoid
  • Paint Recirculation System
  • Adjustable Square Discs & Raising Handle
  • Push Button Control
  • Rechargeable Battery
  • Air Filled Tyres
  • Set Of Spray Nozzles Included
  • Ideal For Marking Car Parks, Industrial Floors & More

Made In The UK: High quality line marker manufactured by experts in the industry.

Push Button Control: Allows for easy operation of the spray, with the simple press of a button.

High Pressure Spray System: Consistent paint delivery and excellent coverage over the surface.

Integrated Solenoid: Stops the paint spray instantly when the button is released, meaning no drips.

Paint Recirculation System: Keeps the paint at the ideal consistency for spraying.

Battery Powered: Line mark for hours on a single charge.

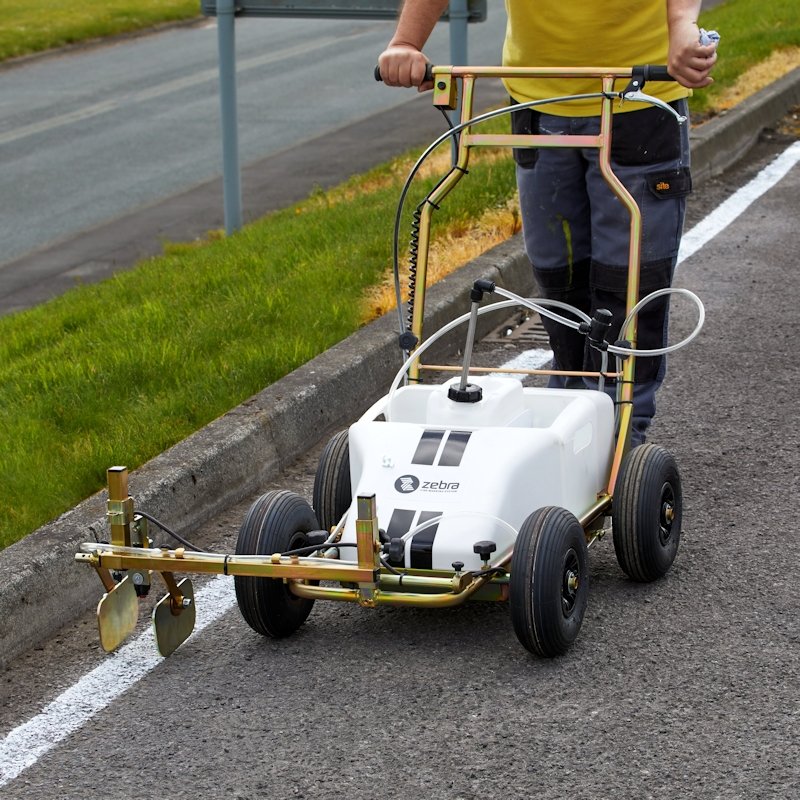

Side Mounted Spray: Mark right up to kerbs & walls without any problems.

Adjustable Square Line Marking Discs: For crisp and accurate line edges on hard surfaces. Can be adjusted to set the line width, up to 7.5".

Disc Raising Handle: For easy repositioning at the end of a line.

Large Air Filled Tyres: For sturdy and reliable operation, they make it easy to stay on track.

Paint Container Holding Tray: Allows a tub of Zebra line marking paint to be placed securely on to the machine. The pump probes are inserted into the tub and take the paint straight out of the container, meaning no diluting, mixing or pouring of paint, and much less mess than traditional machines.

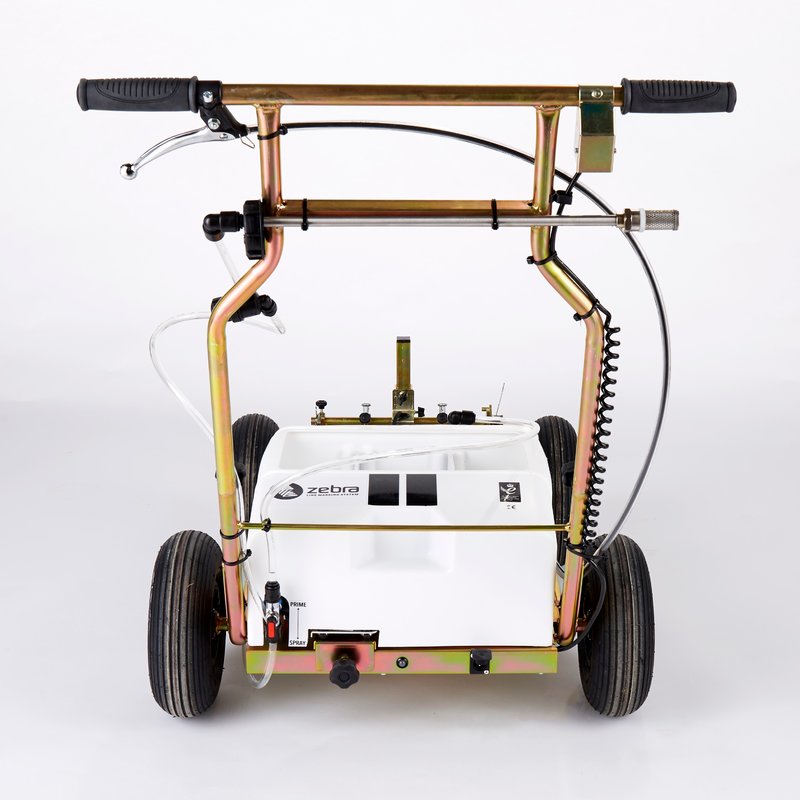

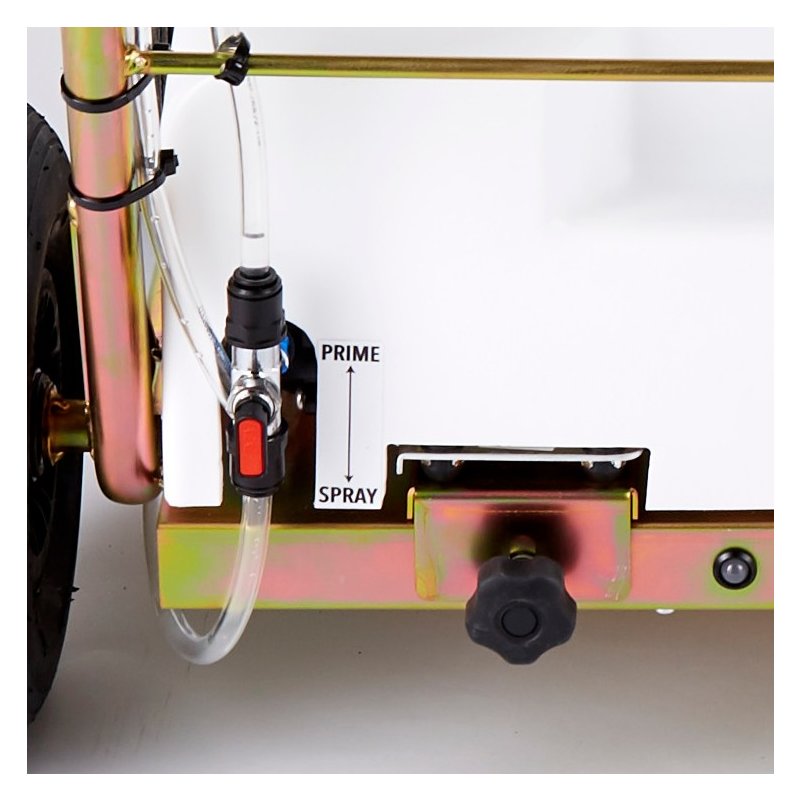

Pump Priming Switch: Located at the back of the machine, this switch allows the system to be primed for use quickly and easily at the start of the job. It also allows the machine to be flushed through clean at the end of the job.

Selection of Nozzles Included: Control the paint flow rate & complete different types of line marking jobs, from initial marking to overmarking - providing great lines whilst saving paint and money.

1L Flush Thru Solution Included: Allows the system, nozzles and filters to be flushed through and cleaned after use to prevent blockages. Extra 10L tubs are available to purchase separately.

Accessories Available: A handheld spray lance can be used for freehand marking, ideal for penalty spots, corner areas, sign marking and more. Round line marking discs can also be purchased, which can be used to replace the square discs on this machine and allow for precise line marking on grass surfaces, for sports pitches and courts. A running track line marking boom can be attached to this machine. It features 3 spray nozzles along a long boom, with wheels positioned at either end. It allows for 3 lines to be sprayed alongside each other simultaneously - perfect for line marking running tracks. We also have extra 10L tubs of Flush Thru available. You can add these accessories to your order using the tick boxes above.

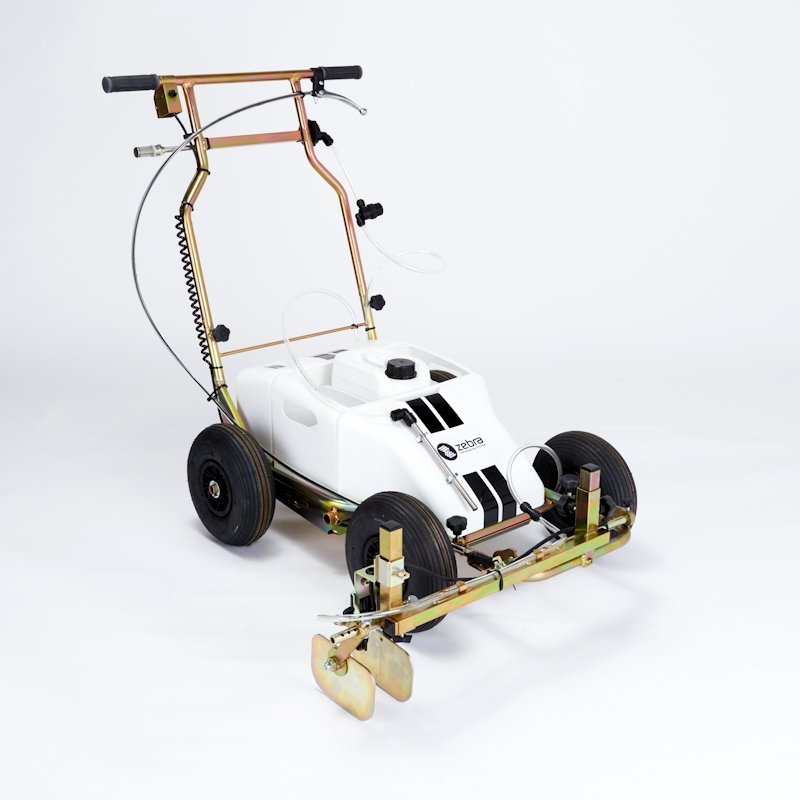

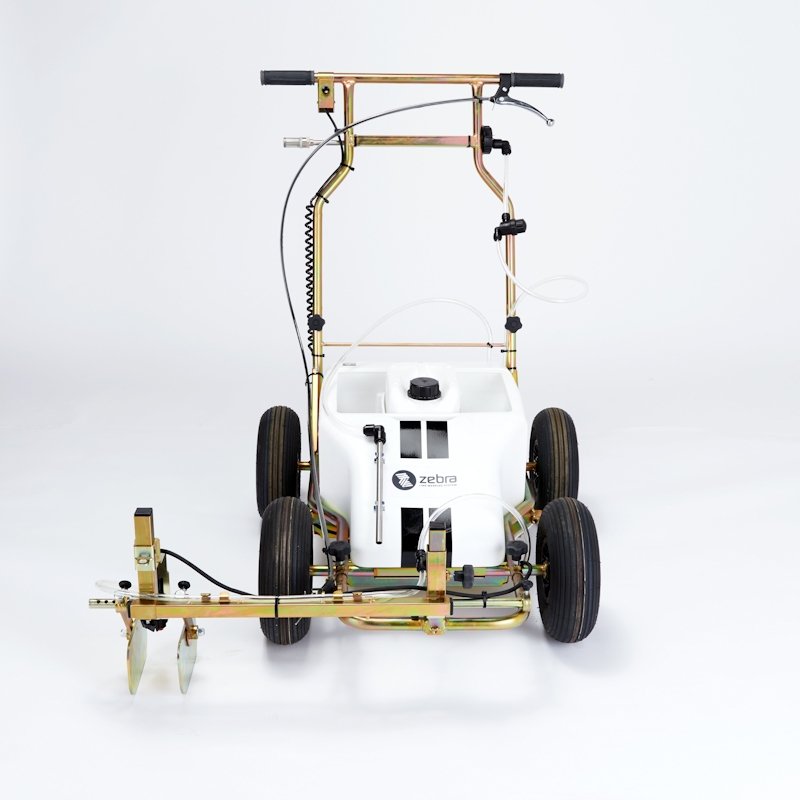

Zebra Lux Hard Surface Line Marking Machine

The ultimate line marker for car park line marking, industrial floor marking & more

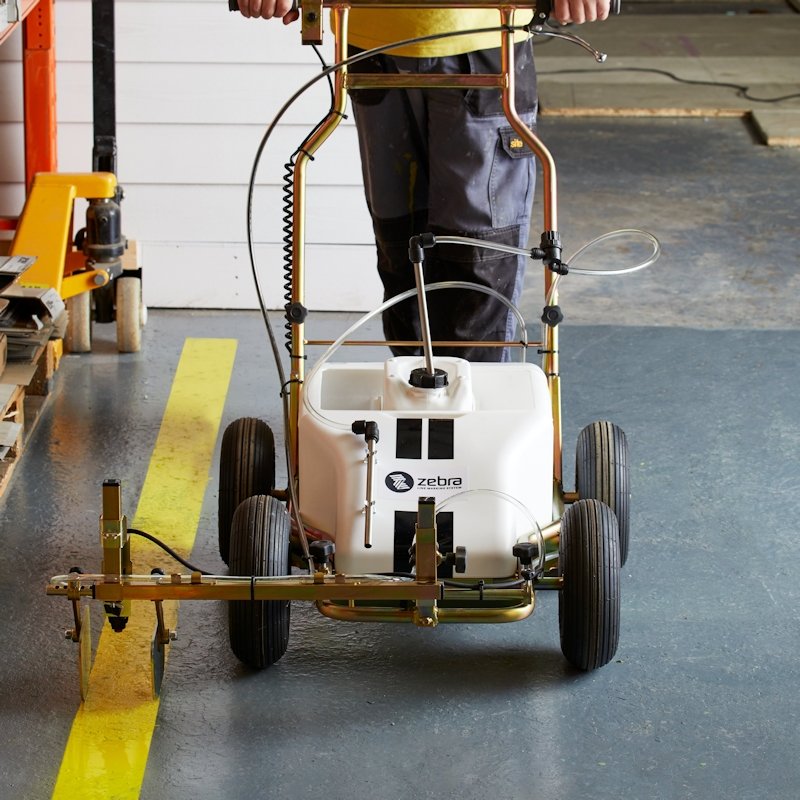

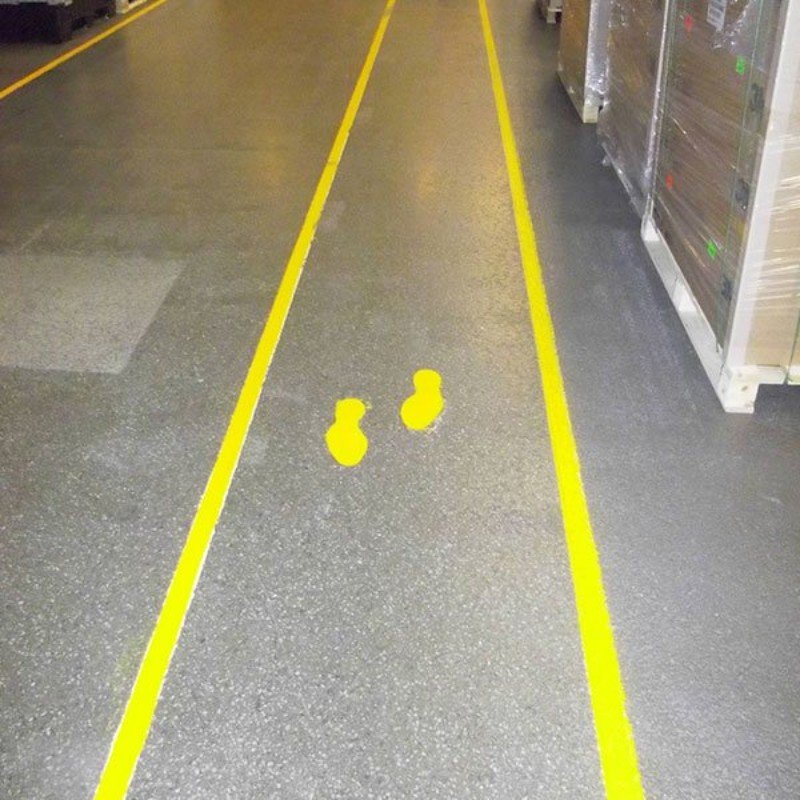

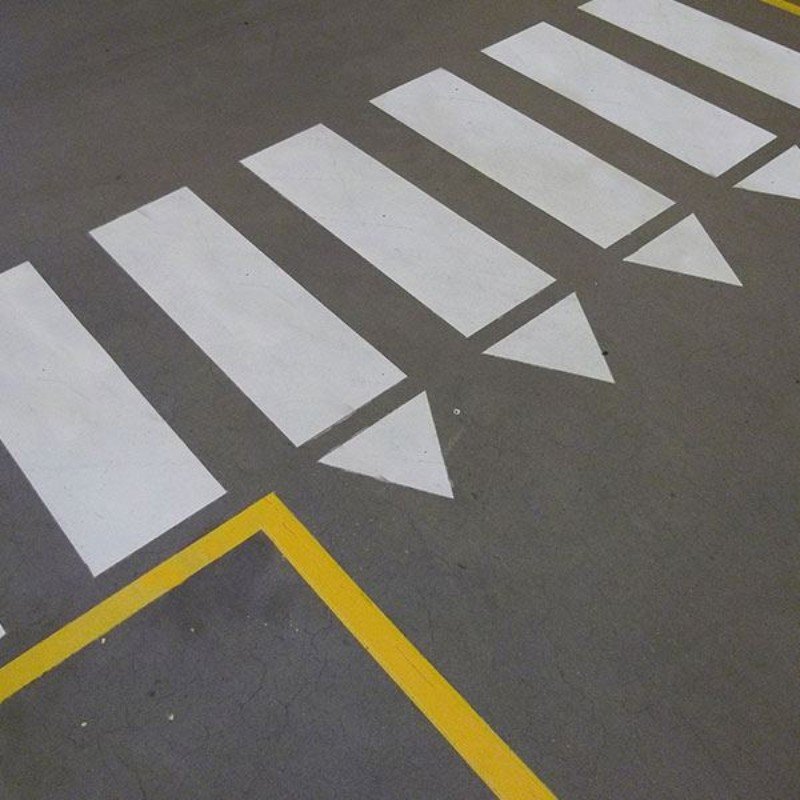

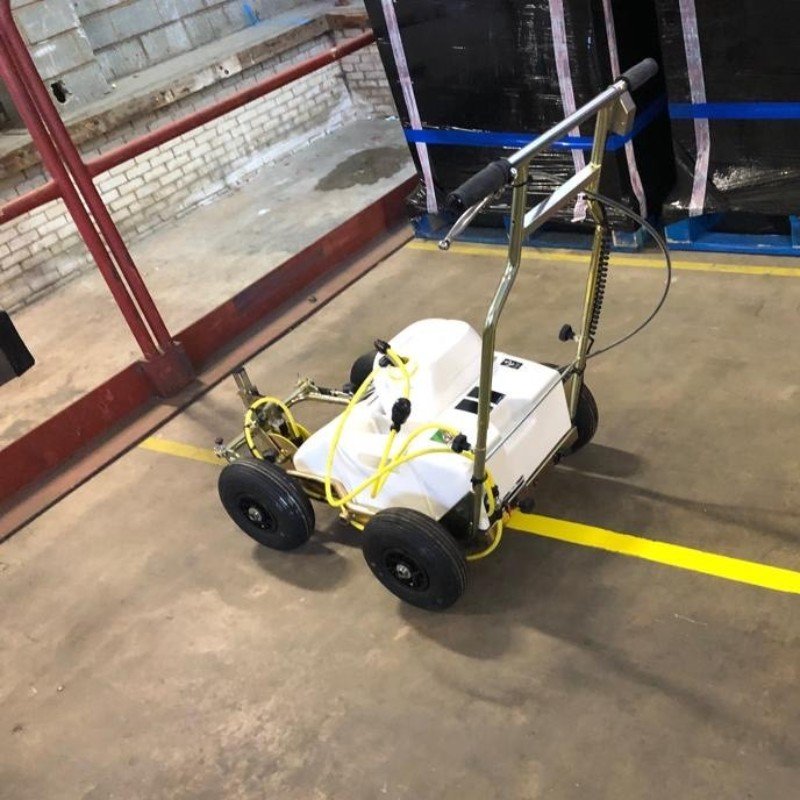

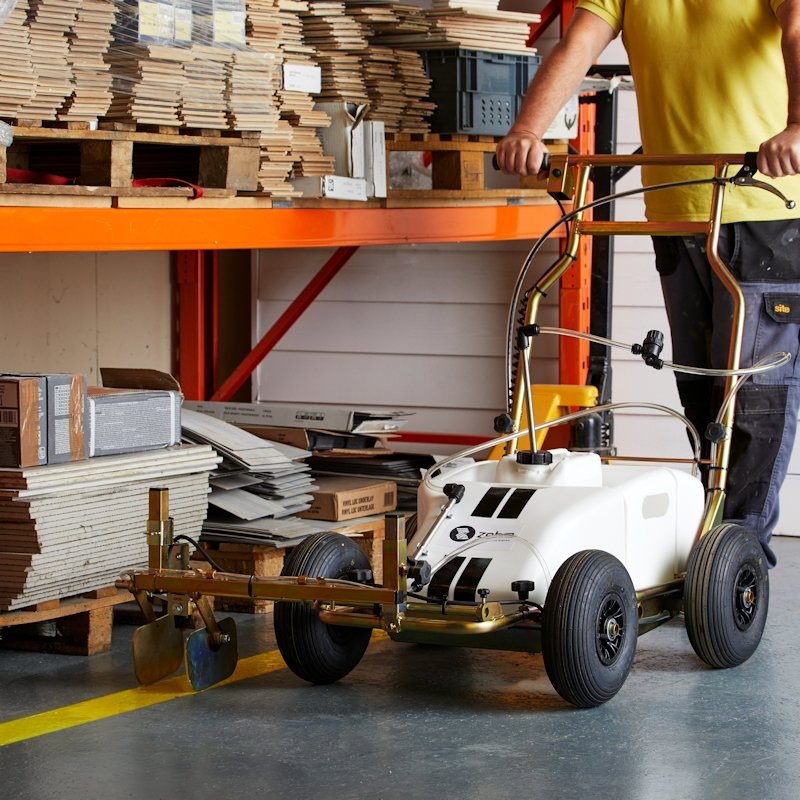

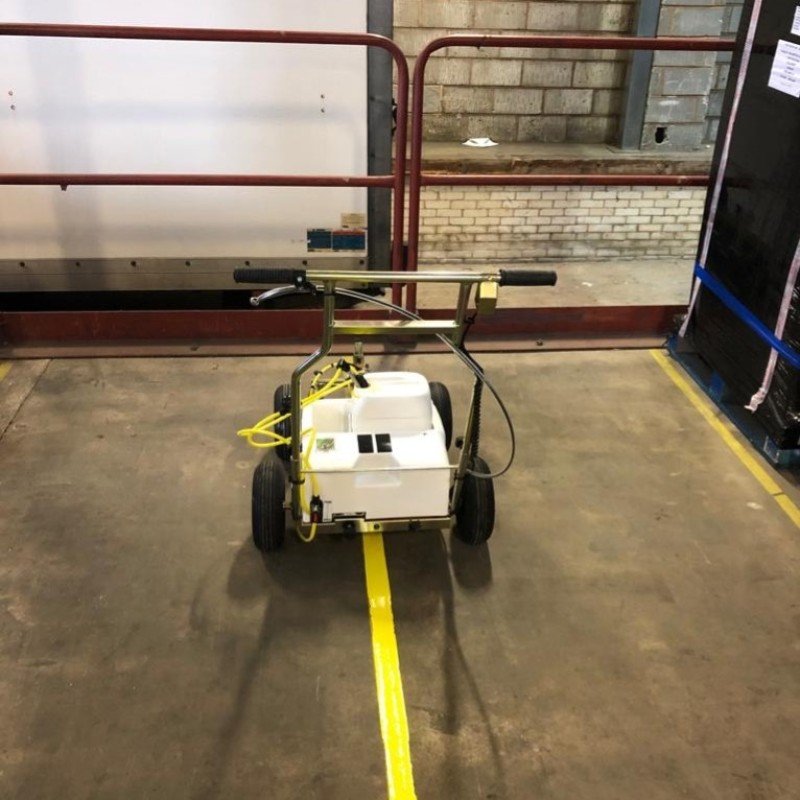

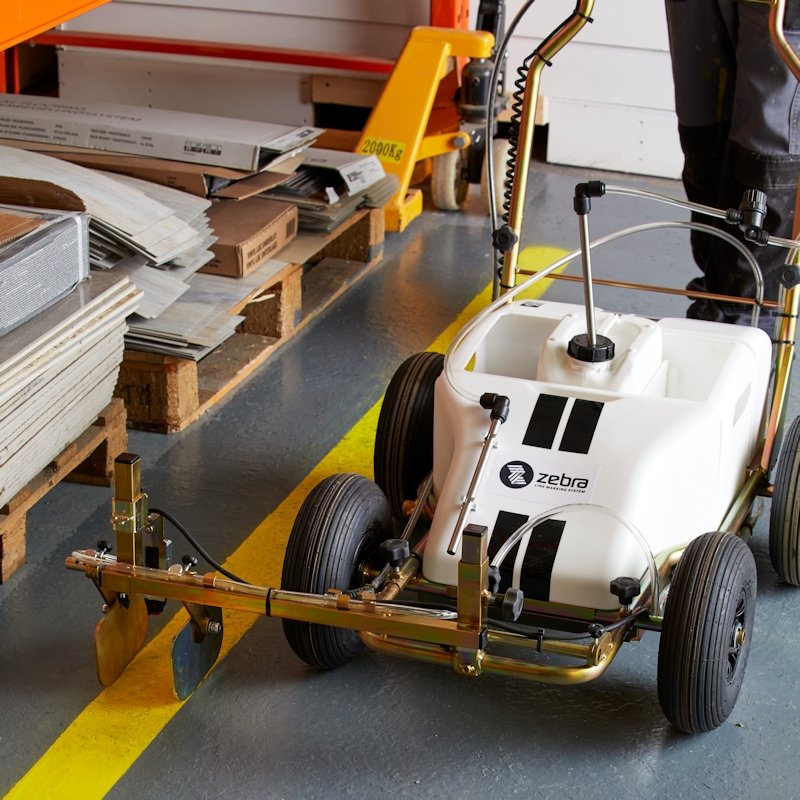

The Zebra Lux Grass Line Marking Machine is a high quality line marker, made in the UK and designed to spray lines on hard surfaces such as concrete and tarmac. It can be used indoors and outdoors for car park line marking, industrial floor line marking, hard sports courts line marking and more.

The Zebra Lux line marker features a high-pressure pump system, powered by a rechargeable battery. The pump system takes the paint directly from the paint container, using probes inserted into the tub, and sprays it evenly and consistently on to the ground.

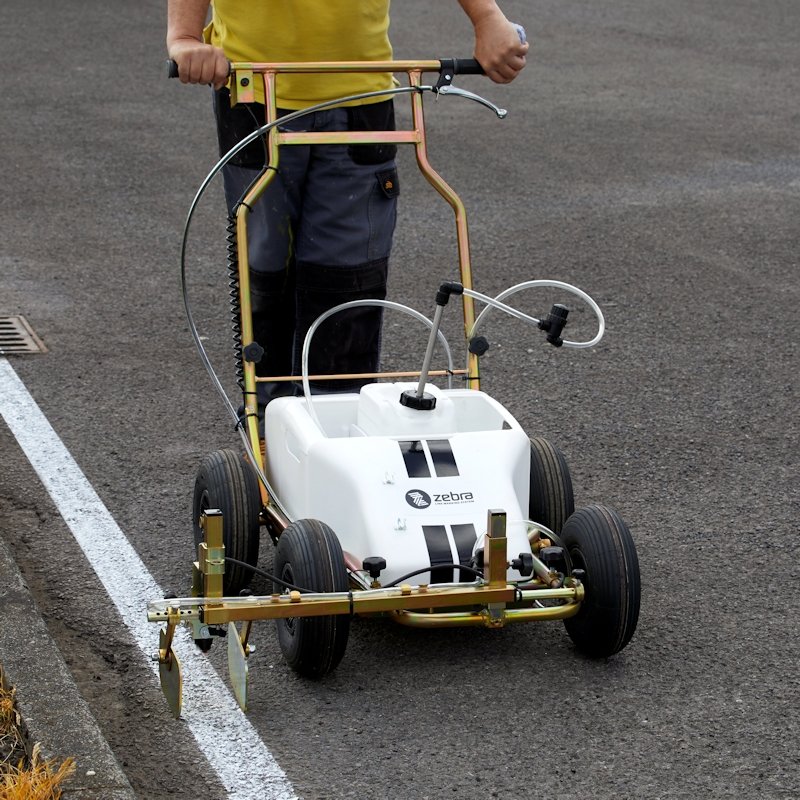

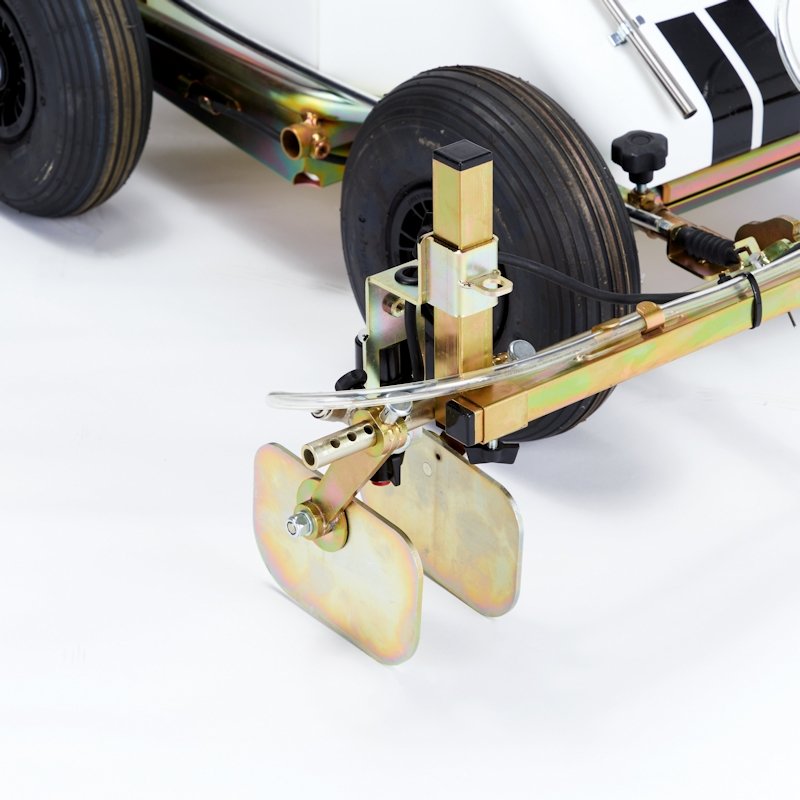

The adjustable square discs which surround the spray nozzle provide clear and crisp edges to the lines and allow the line width to be adjusted up to 7.5" wide. The discs can be raised using a handle on the control bar, in order to reposition the machine easily at the end of a line. The side mounted spray arm allows you to line mark right up to walls and kerbs without a problem.

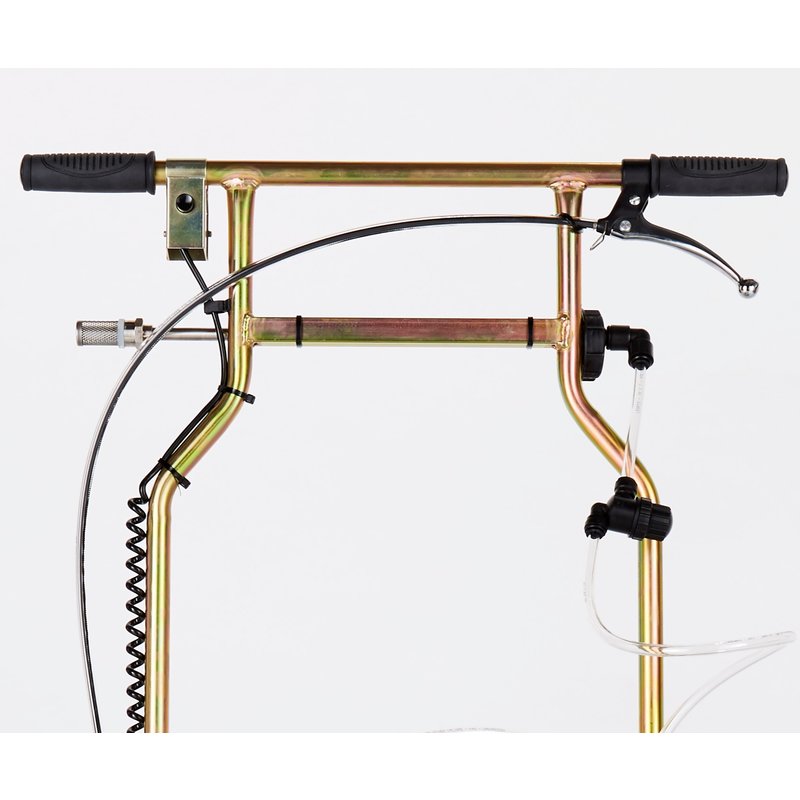

The spray is easily controlled by a simple push button. The solenoid integrated into the system stops the paint flow dead as soon as the button is released, meaning no drips.

The machine has two pump probes which insert into the Zebra line marking paint container. One probe carries the paint to the spray nozzle while the other probe recirculates paint back into the container. This recirculation system ensures that the paint is always well mixed, so it remains an ideal consistency for spraying.

The rechargeable battery provides hours of use per charge, allowing large line marking jobs to be completed without having to stop.

Zebra line marking machines come with a range of different nozzles, suited to different applications. Each nozzle applies a different amount of paint per minute. If you are marking brand new lines, you can use a nozzle that sprays a dense coat of paint, and if you are overmarking existing lines to refresh them and make them more visible, you can choose a nozzle that sprays a lighter coating of paint. This system allows you to just use the paint that you need - reducing wastage and saving you money! The high quality of the spray application and the paint ensure bright, crisp and professional results.

The Zebra Lux line marking machine is designed to be used with Zebra Grass Line Marking Paint. This paint is ready to use right out of the container and does not need diluting, mixing or pouring - simply shake it before use and place the container onto the machine. Place the pump probes into the container of paint, prime the pump using the switch at the back of the machine and it is ready to use. The machine is designed to carry the paint container and keep it steady while you work.

The pump can be primed quickly at the start of the job with the flick of a switch. The pump priming switch also allows the system to be flushed through and cleaned at the end of the job, to prevent blockages and ensure years of reliable service.

Accessories:

An optional handheld spray lance attachment is available, which allows for free-hand marking and spraying of signs and stencils on to the ground.

Round line marking discs can also be purchased, which can be used to replace the square discs on this machine and allow for precise line marking on grass surfaces, for sports pitches and courts.

The machine comes with a 1L bottle of Flush Thru solution, for cleaning the system and nozzles after a job. You can also purchase 10L bottles of this solution separately.

A running track line marking boom can be attached to this machine. It features 3 spray nozzles along a long boom, with wheels positioned at either end. It allows for 3 lines to be sprayed alongside each other simultaneously - perfect for line marking running tracks.

You can add these accessories to your order using the tick boxes above.

Zebra Lux Machine Dimensions:
Height at the lowest setting: 93 cm
Height at the highest setting: 108 cm
Length at the shortest setting: 110 cm
Length at the longest setting: 125 cm
Width: 72 cm
Weight: 32 kg
Warranty: 12 months

Zebra Lux Line Marking Machine
Square discs for hard surface line marking
Zebra Lux side arm attachment
1L Zebra Flush Thru Pump & Nozzle Cleaner
Tub of Zebra spray nozzles
Charger cable
Instructions

Optional Extras:

10L Zebra Flush Thru Pump & Nozzle Cleaner

Round Discs For Grass & Artificial Grass Line Marking
- enable the Zebra Lux machine to be used for grass & artificial grass line marking

Handheld Spray Lance With Control Valve & Hose
- for freehand marking of numbers, letters, signs & stencils

Running Track Line Marking Boom
- a long boom attachment featuring three spray nozzles. Allows for three lines to be sprayed alongside each other simultaneously. Perfect for marking running tracks.
