Compact Line Marker: Ideal for users of all levels. Easy to handle and simple to store when not in use.
Made In The UK: High quality machine manufactured by experts in line marking.
High Pressure Spray System: Delivers consistent paint coverage for high quality lines.
Battery Powered: Line Mark for up to 4 hours on a single charge.

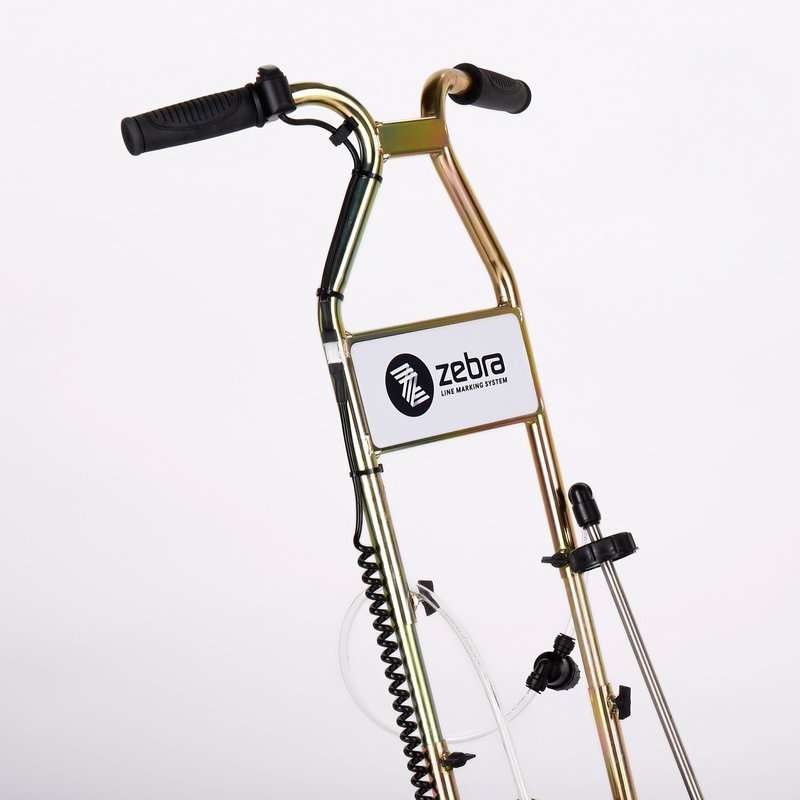

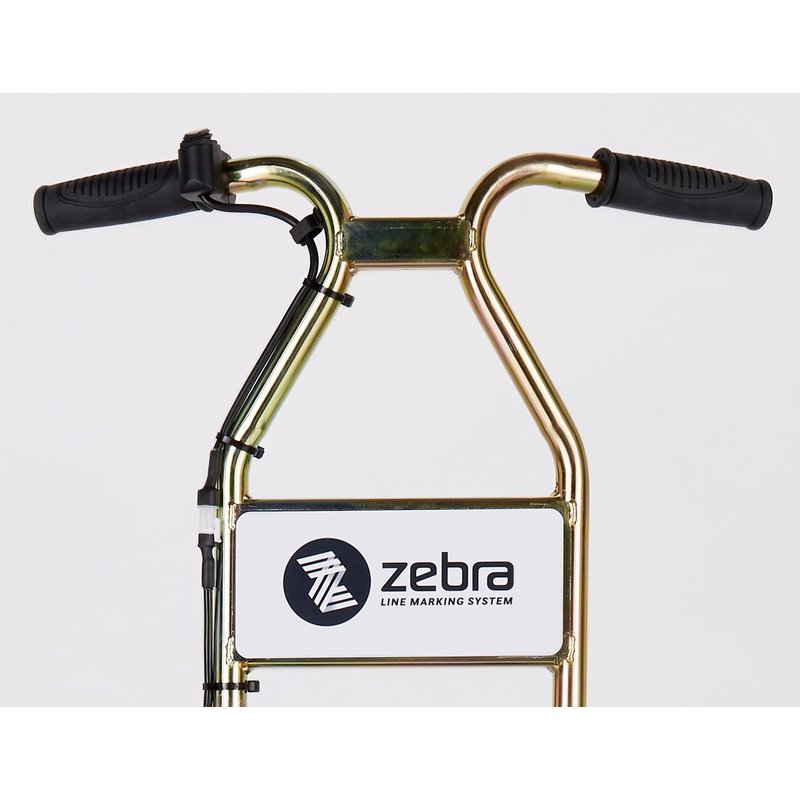

Push Button Control: Allows for easy operation of the spray, with the simple flick of a switch.
Side Mounted Spray: Makes it easy to line mark right up to kerbs and walls.
Adjustable Square Line Marking Discs: For crisp and accurate line edges on hard surfaces like concrete and tarmac. Can be adjusted to set the line width, up to 7.5".

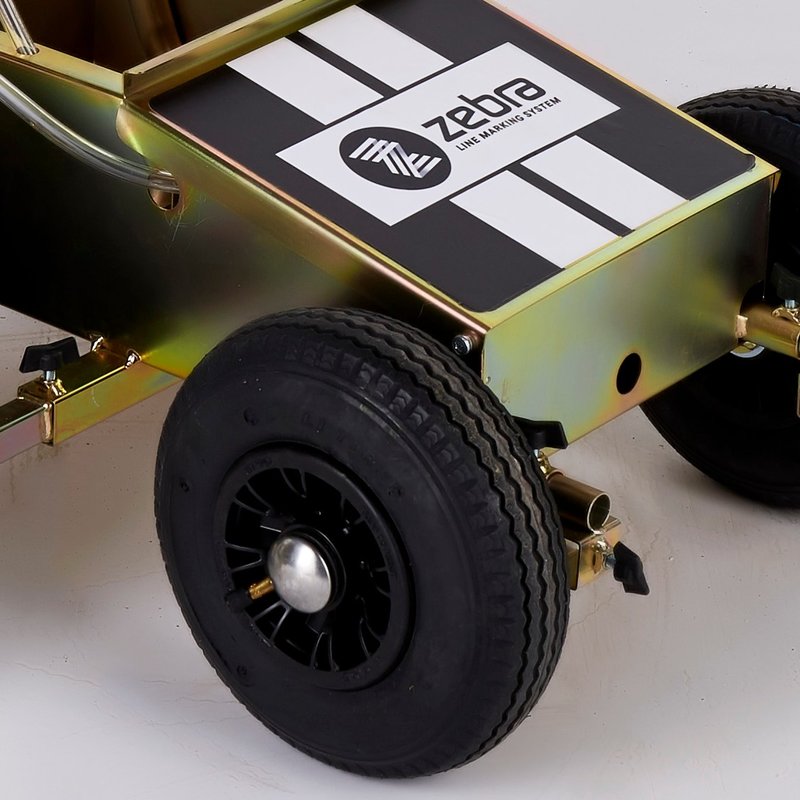

Large Air Filled Tyres: For sturdy and reliable operation. The wheels make it easy to stay on track.
Paint Container Holding Tray: Allows a tub of Zebra line marking paint to be placed securely on to the machine. The pump probe is inserted into the tub and takes the paint straight out of the container, meaning no diluting, mixing or pouring of paint, and much less mess than traditional machines.
Pump Priming Switch: Located at the back of the machine, this switch allows the system to be primed for use quickly and easily at the start of the job. It also allows the machine to be flushed through and cleaned easily at the end of the job.
Selection of Nozzles Included: Control the paint flow rate & complete different types of line marking jobs, from initial marking to overmarking - providing great lines whilst saving paint and money.
1L Flush Thru Solution Included: Allows the system, nozzles and filters to be flushed through and cleaned after use to prevent blockages. Extra 10L tubs are available to purchase separately.
Accessories Available: A handheld spray lance can be used for freehand marking, ideal for spraying stencils and signs on the ground. Round line marking discs can also be fixed to this machine, ideal for line marking on grass surfaces. We also have extra 10L tubs of Flush Thru available. You can add these accessories to your order using the tick boxes above.

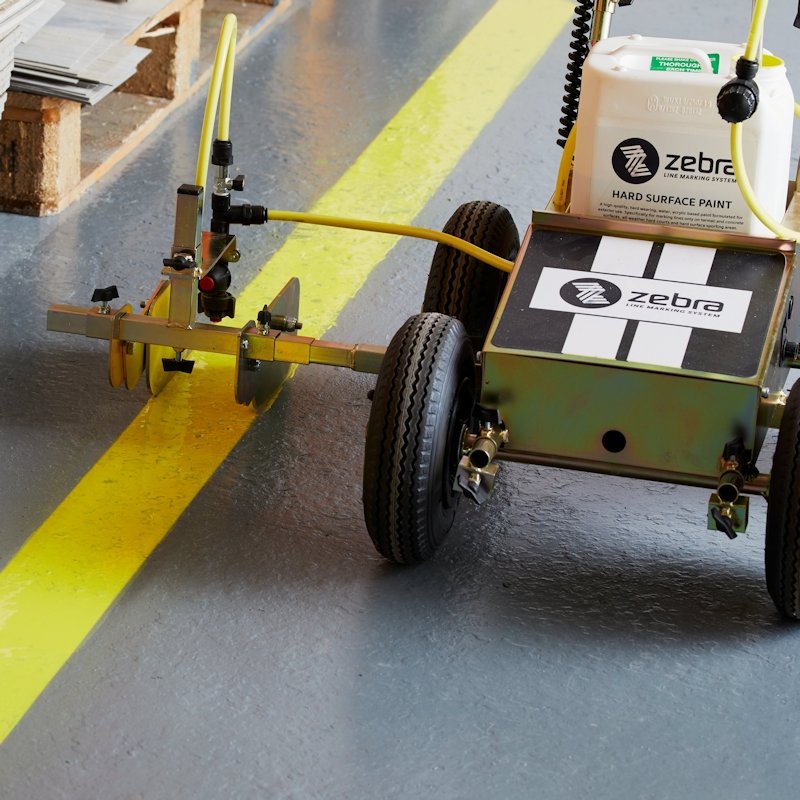

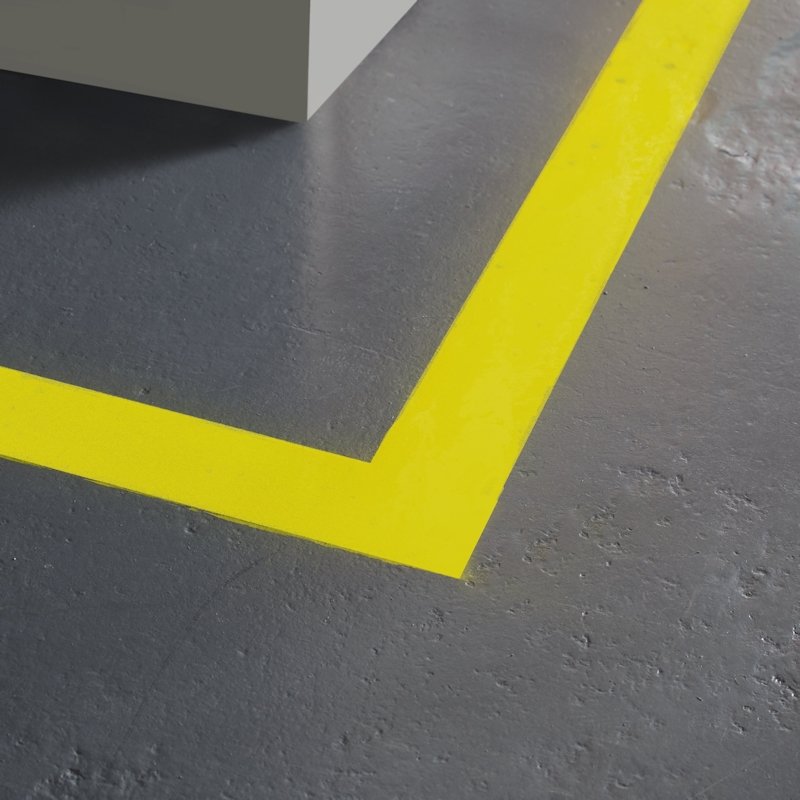

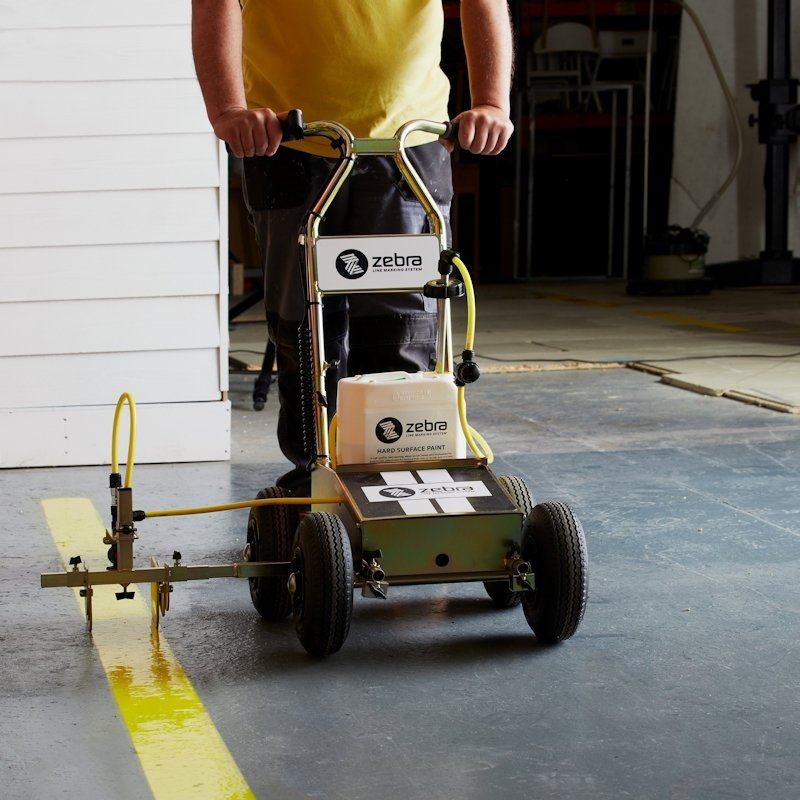

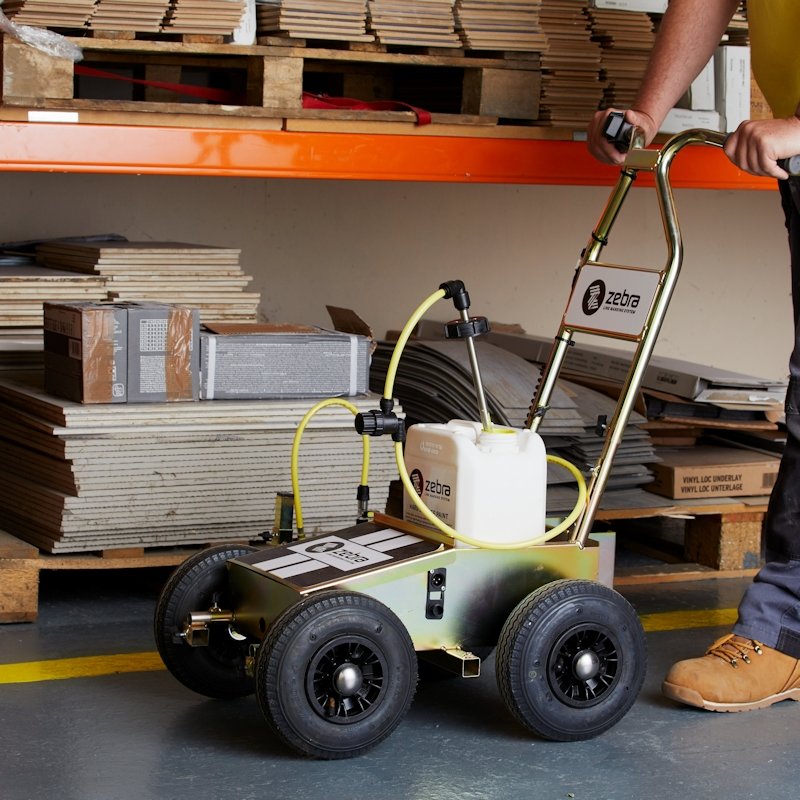

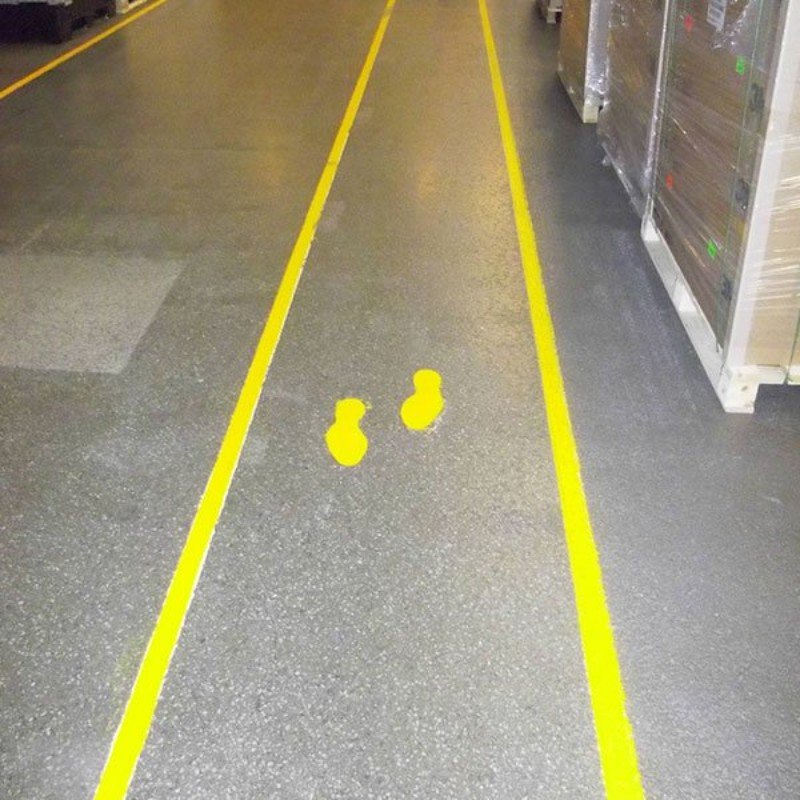

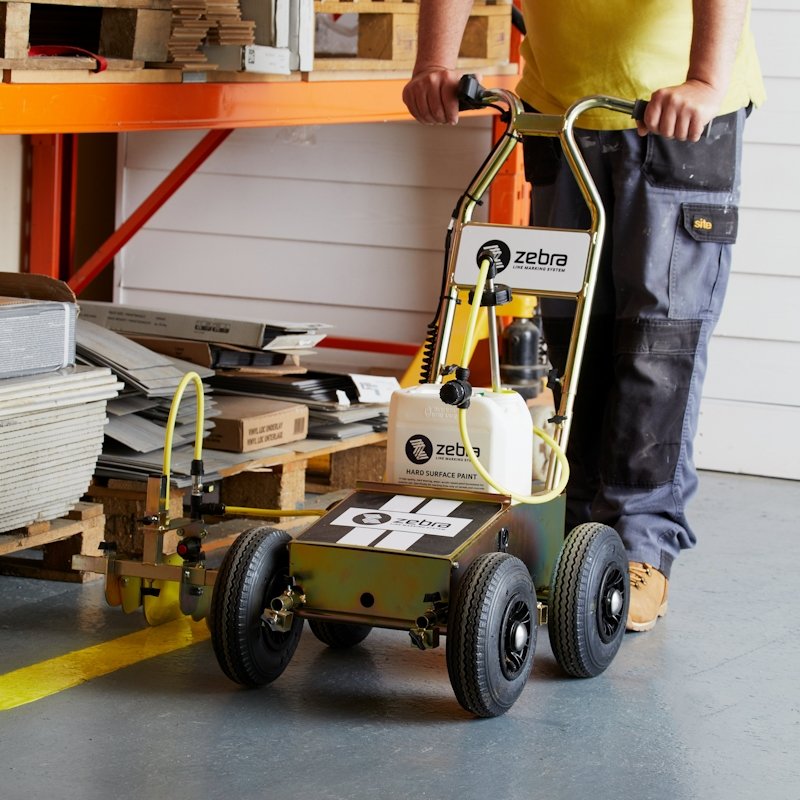

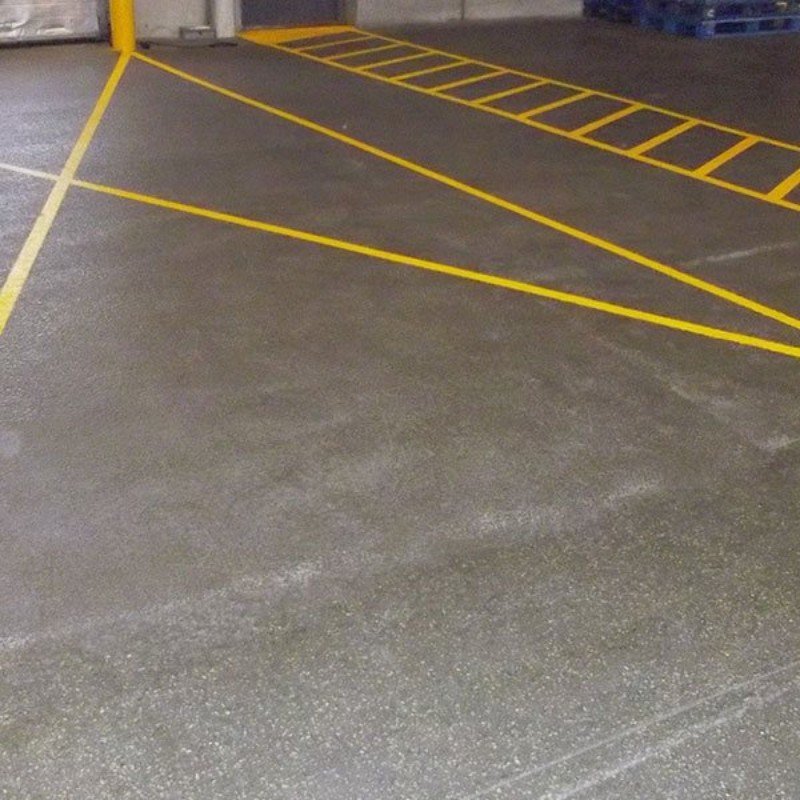

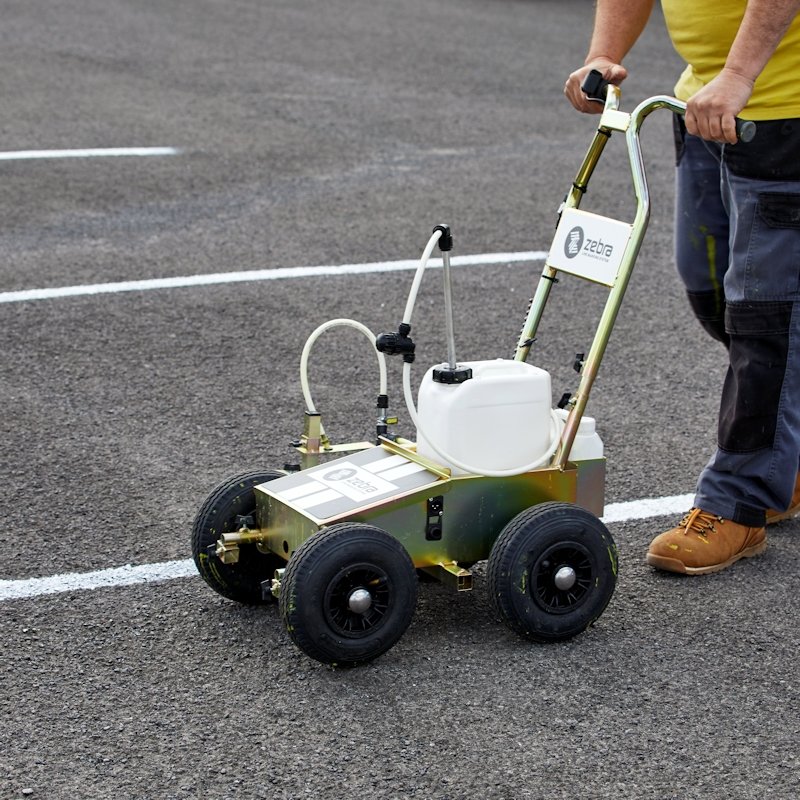

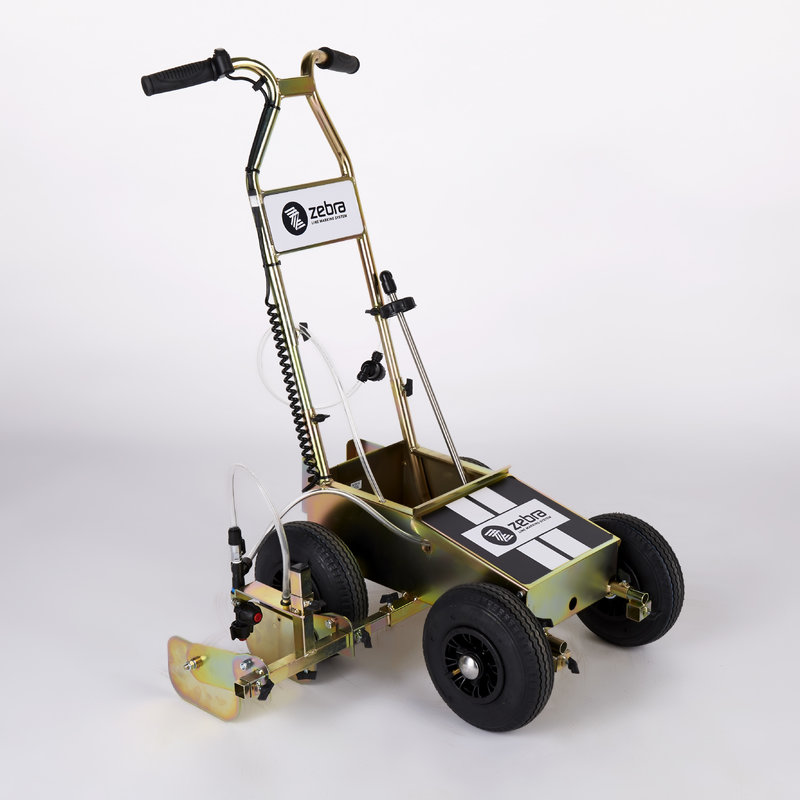

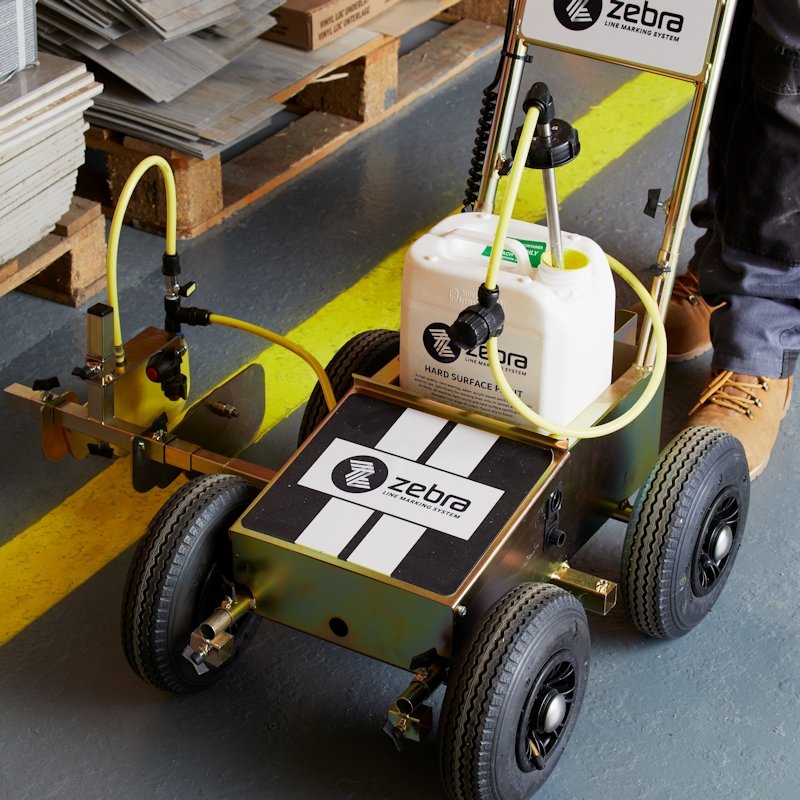

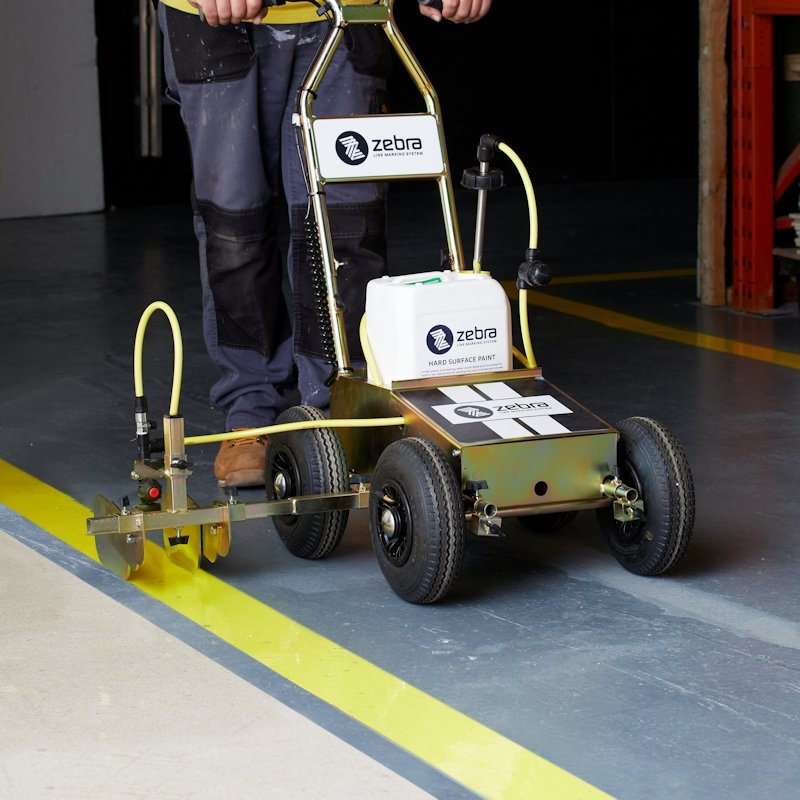

The Zebra Eco Hard Surface Line Marking Machine is a high quality line marker, made in the UK, and designed for spraying bright and crisp lines on to the ground. It can be used both indoors and outdoors on a range of hard surfaces, such as concrete and tarmac. It is ideal for line marking contractors, as well as maintenance and grounds staff, for car park line marking, warehouse line marking, hard surface sports court line marking and much more.
This compact line marker offers excellent ease of use along with high quality results. It is powered by a rechargable battery, which offers up to 4 hours of consistent use per charge, so you can complete large line marking jobs without having to stop.

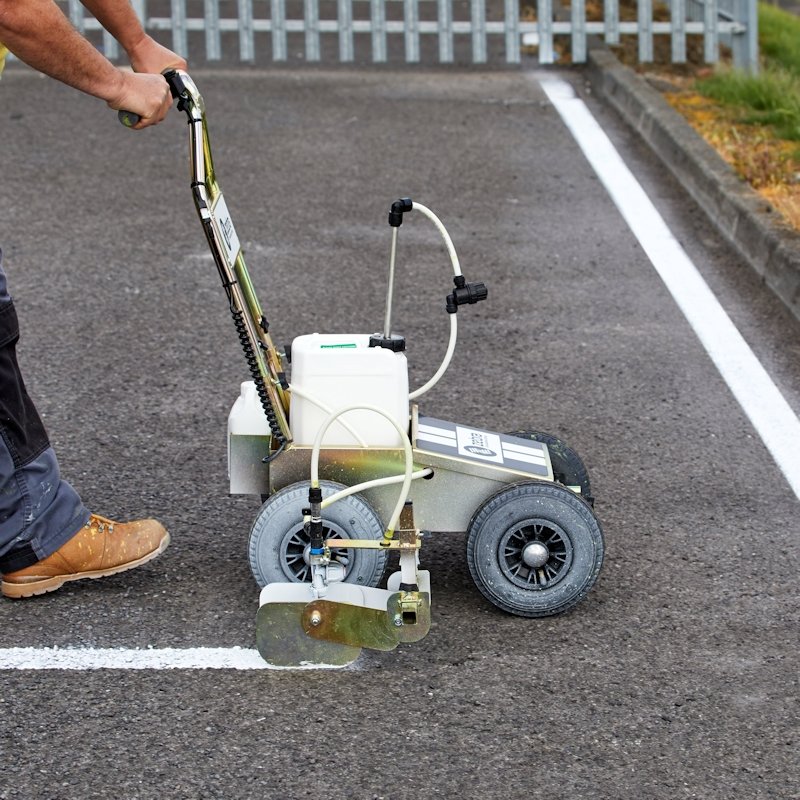

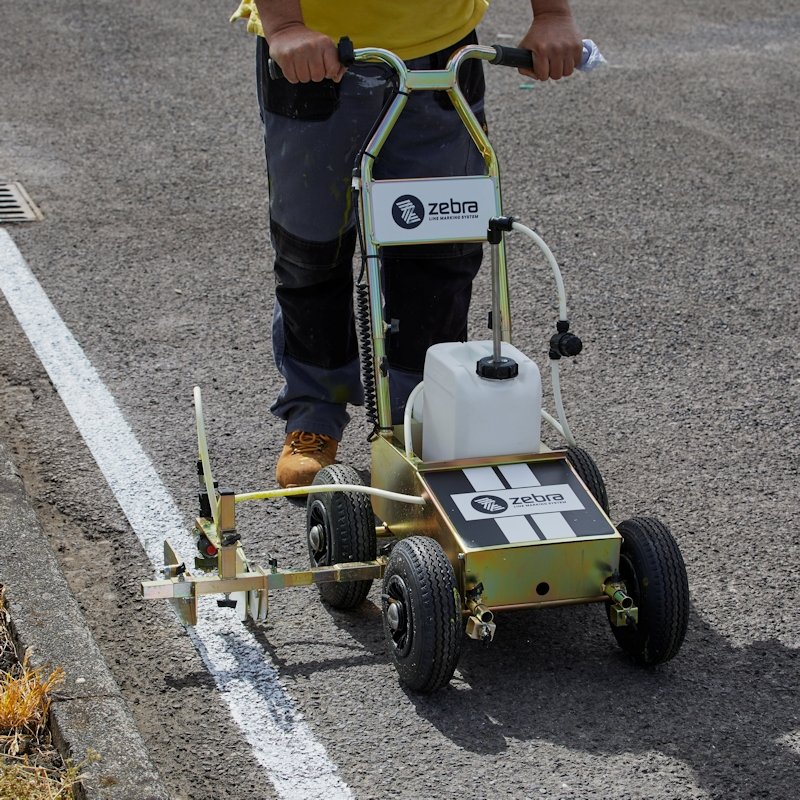

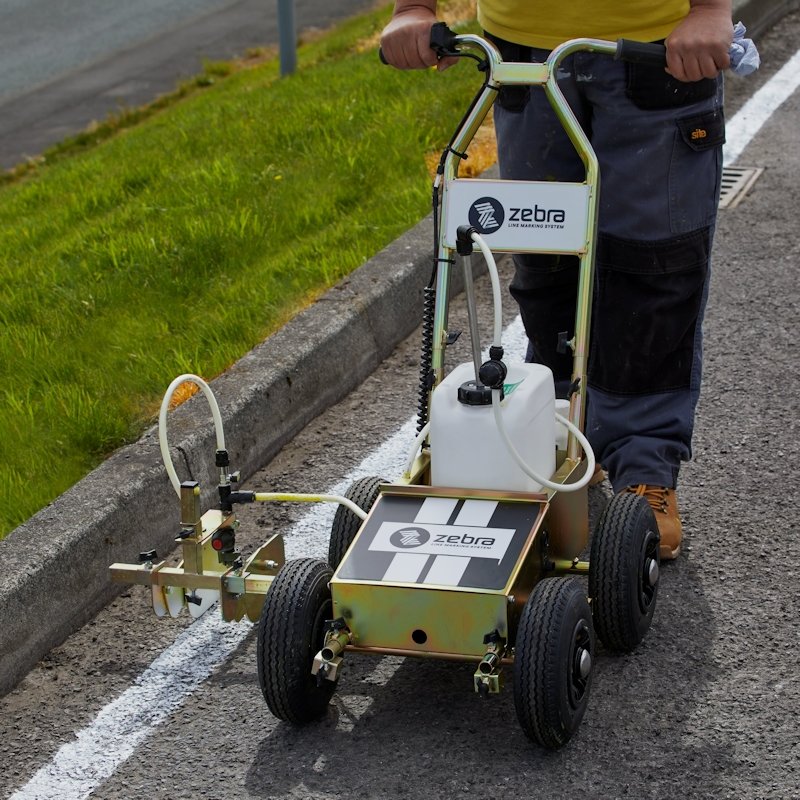

The Zebra Eco machine has a side mounted spray arm. The side mounted position of the arm allows you to line mark right up to walls and kerbs without a problem.
The high pressure pump system takes the paint directly from the paint container, using a probe which is inserted into the tub, and sprays the paint evenly and consistently on to the floor surface.

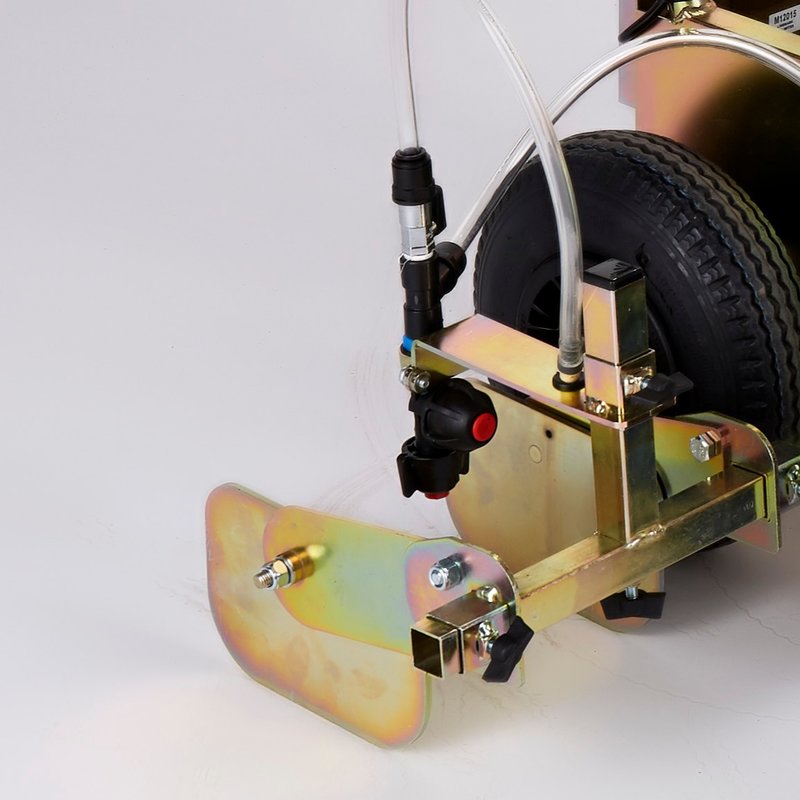

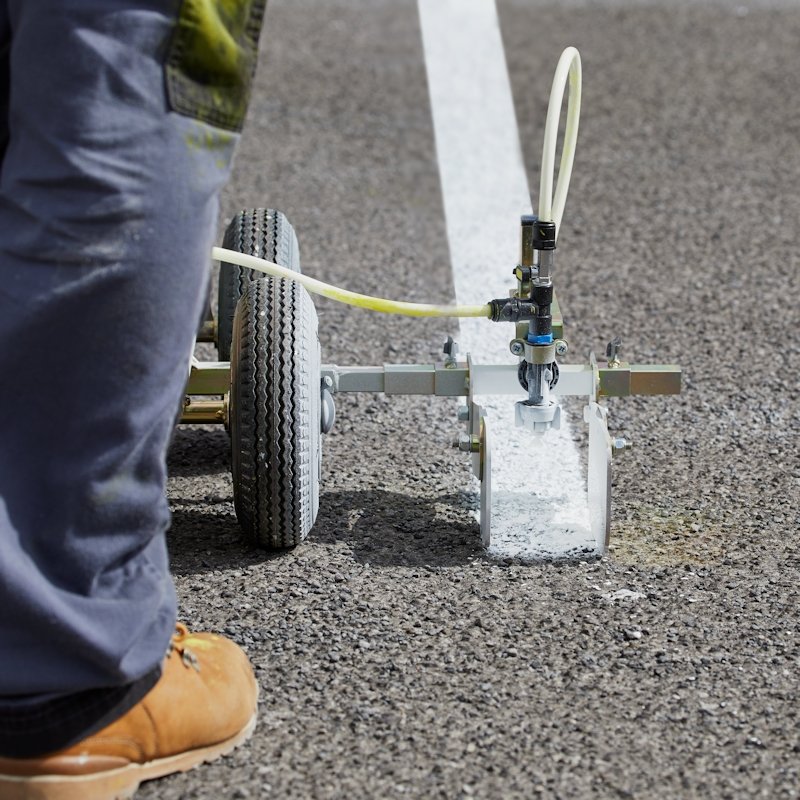

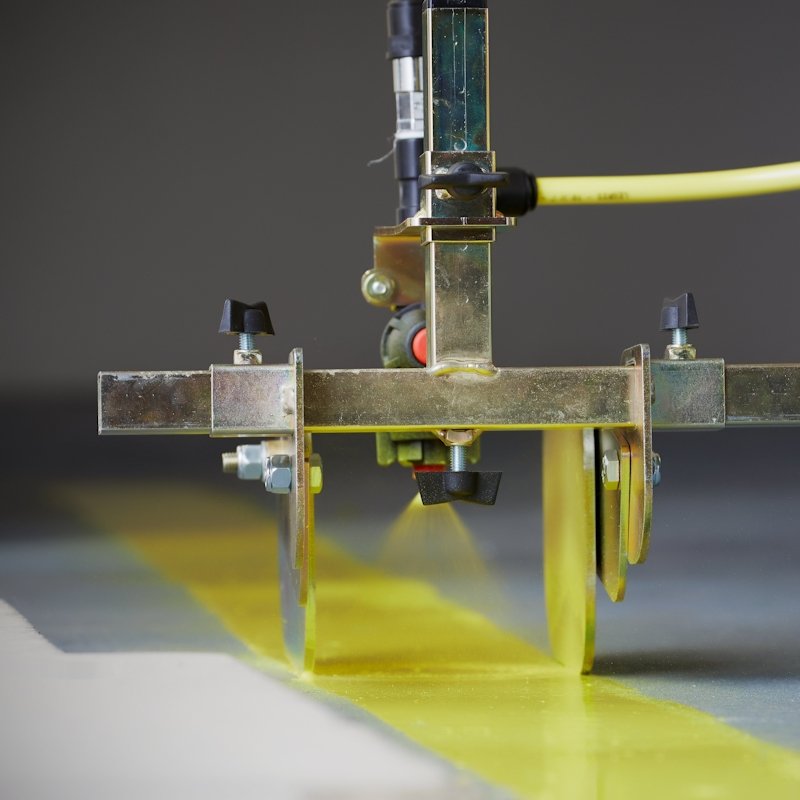

The machine features adjustable square discs, which surround the spray nozzle, and provide clear and crisp edges to the lines. These adjustable discs allow the width of the line to be adjusted up to 7.5" wide.
The Zebra Eco machine comes with a range of different nozzles - each suited to a different application. Each nozzle applies a different amount of paint per minute. If you are marking brand new lines, you can use a nozzle that sprays a dense coat of paint, and if you are updating existing markings you can choose a nozzle that sprays a lighter coating of paint. This system allows you to just use the paint that you need - reducing wastage and saving you money! The high quality of the spray application and the paint ensure bright, crisp and professional results.
This line marking machine is designed to be used with Zebra Hard Surface Line Marking Paint, which is ready to use right out of the container and does not need diluting, mixing or pouring - simply shake it before use and place the container onto the machine. Place the pump probe into the container of paint, prime the pump using the switch at the back of the machine and it is ready to use. The machine is designed to carry the paint container and keep it steady while you work.
Accessories: An optional handheld spray lance attachment is available, which allows for free-hand marking and spraying of features such as penalty spots, stencils, patterns, logos, numbers and letters. Round line marking discs can also be purchased, which can be used to replace the square discs on this machine and allow for precise line marking on grass surfaces, for sports pitches and courts. The machine comes with a 1L bottle of Flush Thru solution, for cleaning the system and nozzles after a job. You can also purchase 10L bottles of this solution separately. You can add these accessories to your order using the tick boxes above.
Zebra Eco Machine Dimensions:
Height at the lowest setting: 87 cm
Height at the highest setting: 107 cm
Length at the shortest setting: 84 cm
Length at the Longest setting: 104 cm
Width without the side arm: 47 cm
Width with the side arm: 100 cm
Weight: 20 kg
Warranty: 12 months
Zebra Eco Line Marking Machine
Square discs for hard surface line marking
1L Zebra Flush Thru Pump & Nozzle Cleaner
Tub of Zebra spray nozzles
Charger cable
Instructions
Optional Extras:
10L Zebra Flush Thru Pump & Nozzle Cleaner
Round Discs For Grass Line Marking
Handheld Spray Lance With Control Valve & Hose For Freehand Marking
